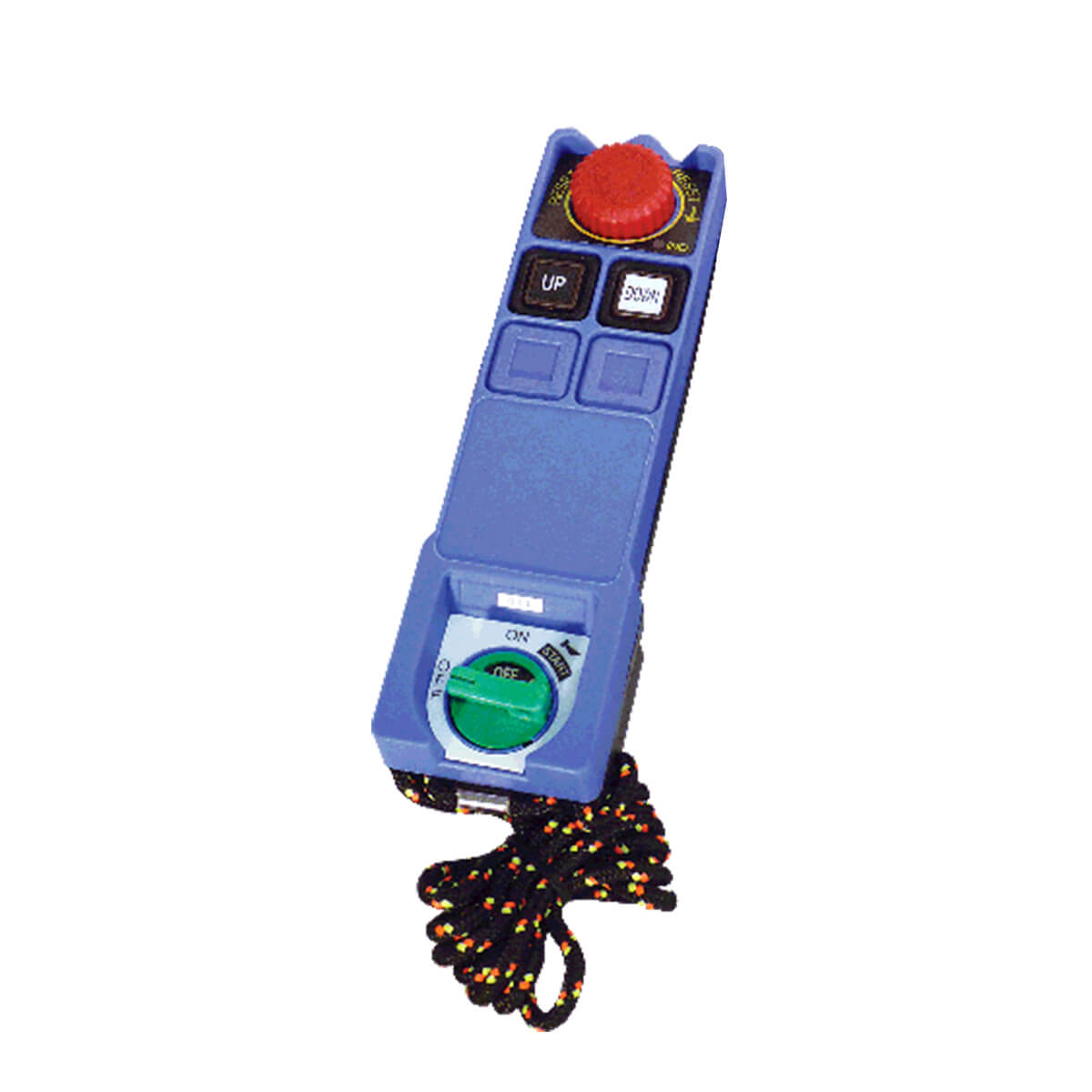

Replacement Transmitter (Remote) for INMOTION 220, 260, 310, and 532 Series.
Price range: $375.00 through $827.00
Can't find what you're looking for?
Contact us today if you need a custom solution.
Replacement transmitter for the INMOTION Classic Radio Remote Control System.
IP65 Rated.
| Frequency | 310 MHz |
| Modulation Method | 4 FSK |
| Typical Operating Range | 300 ft. (100M) |
| Power Supply | 2 X 1.5V “AA” Battery |
| Average Power Consumption | 10mA (220–260)40mA (310–532) |
| Operating Temperature | -49F to + 176F |
| Protection Degree | IP65 |
| Housing Material | Fiberglass / ABS |
| Overall Dimension | 6.4 x 1.9 x 1.8 Inches |
| Weight | 2 lbs |
|---|---|
| Dimensions | 12 × 3.75 × 3.75 in |
| Brand | |
| Buttons | |
| Country of Origin | |
| Motion | |
| Series | |
| System Model | 220-1-TX — 2 Button, 2 Speed, 220-2-TX — 4 Button 2 Speed, 260-TX — 6 Button, 1 Speed, 310-TX — 8 Button, 2 Speed (Dual Hoist), 310-TX — 8 Button, 2 Speed (Single Hoist), 342-TX — 8 Button, 2 Speed, 532-TX — 6 Button, 2 Speed, 1210-TX — 12 Button, 2 Speed, 1242-TX — 12 Button, 2 Speed |
| Warranty |

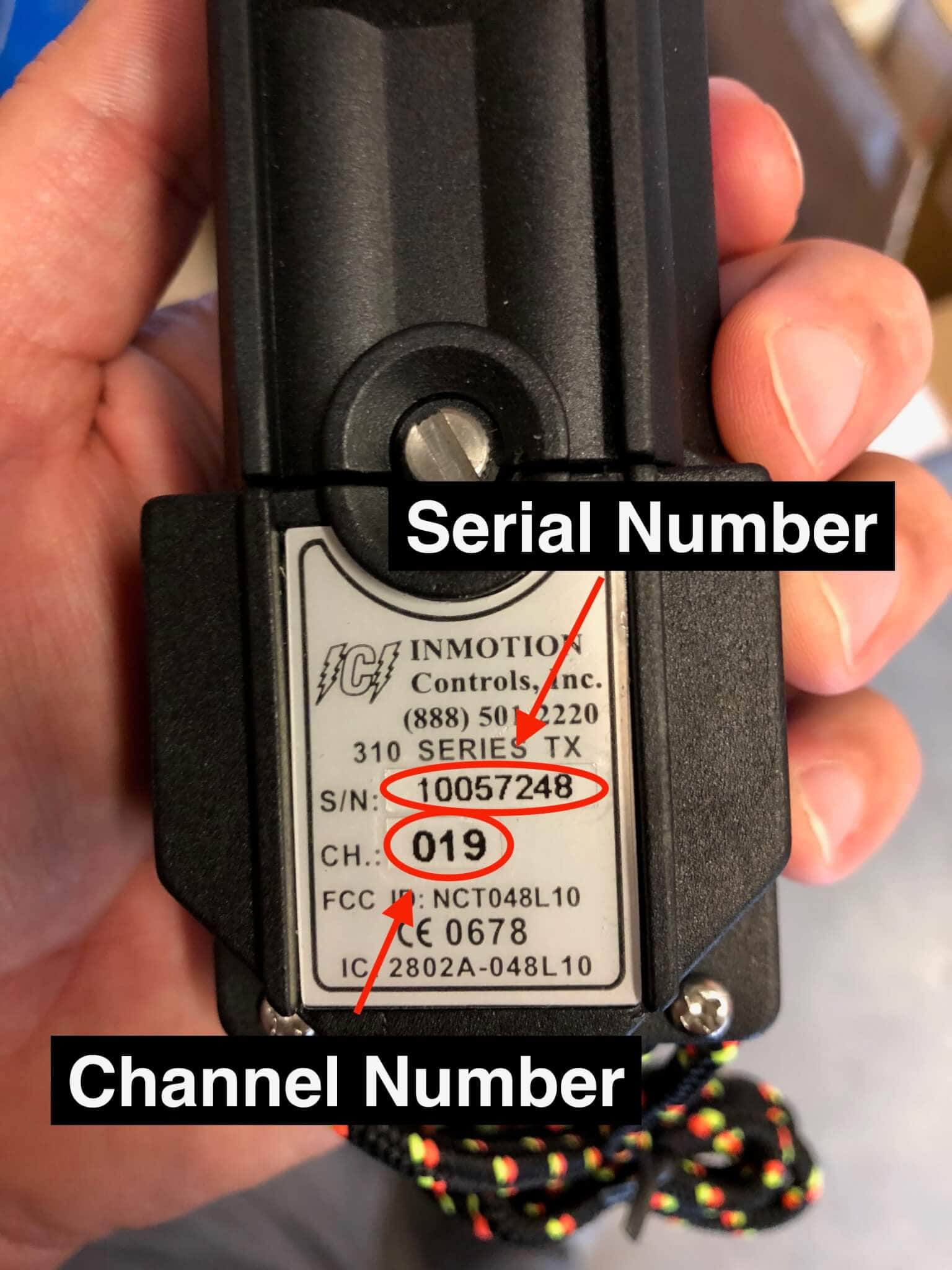

If you order a new transmitter from us to replace your old one, we will program your new transmitter to work out of the box with your system.
“Step” is the term used to refer to the number of different lifting speeds a hoist has. Sometimes the term “speed” is used instead of “step.” A single step (or single speed) hoist can only lift at the speed that it was originally programmed. A two step (or two speed) hoist can be programmed to lift at a slower speed and faster speed. A variable speed hoist has a lift speed that can be adjusted on the fly by the hoist operator with only the twist of a knob.
“Motion” is the term used to refer to how many different components a radio can control. A 1 motion radio is used to control a hoist. A 2 motion radio is used to control a hoist and trolley. A 3 motion radio is used to control a hoist, trolley, and a bridge. Radios with 4 or more motions are for more advanced applications where the operator wants control multiple hoists, trolleys, or bridges all at the same time.
The most often case is that the batteries are dead. To get the most out of your battery life, make sure to turn off the transmitter when not in use.
