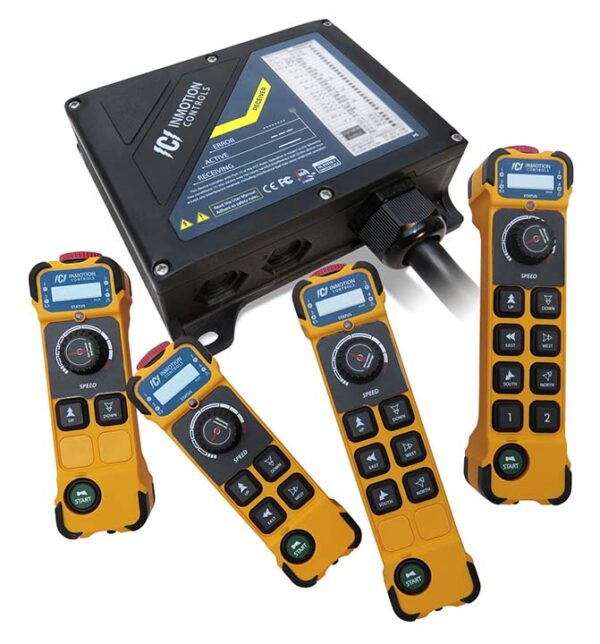

INMOTION Variable Speed Radio Remote Control System

Price range: $1,767.00 through $2,328.00

Lead Time: Ships in
 business days from PWI
SKU: KVS-SYSCategories: Controls, Radios, Radio Remote Control SystemsBrand: InMotion
INMOTION Variable Speed Radio Remote Control System

Can't find what you're looking for?

Contact us today if you need a custom solution.

INMOTION Variable Speed Radio Remote Control System

The INMOTION Variable Speed Radio Remote Control System delivers precise, responsive control for overhead lifting and material handling applications where accuracy and operator safety matter most. Designed for smooth operation, INMOTION allows operators to vary speed intuitively—providing greater control during positioning, spotting, and delicate load handling.

Product Features

  • Works with Variable Frequency Drives (must have 0v-10v input)
  • Improve Safety, Better Load Control, Custom Configurations
  • UL/CSA Certified
  • Compatible with Qi Wireless Charging

Ideal Applications

  • Bridge Cranes
  • Workstation Cranes
  • Gantry and Jib Cranes

InMotion Variable Speed Transmitter Specs

Frequency 902.5 ~ 927.5 MHz
Modulation Method 2 GFSK
Typical Operating Range 300 ft. (100M)
Control System PLL (Phase Lock Loop)
Antenna Impedance 50 ohms
Typical Response Time for Commands 50ms – 100ms
Power Supply AA(HR6) Ni-MH x 2
Antenna Internal
Average Power Consumption [email protected] dc (default setting)
Radio Frequency Power <15dBm (default setting)
Operating Temperature (-4ºF) - (131ºF) / (-40ºF) - (149ºF)
Protection Degree IP65
Housing Material PA6(30% Glass Fiber)
Overall Dimension 7.63" x 2.25" x 2.00" (2-8 Buttons)

InMotion Variable Speed Receiving Unit Specs

Frequency 902.5 ~ 927.5 MHz
Modulation Method 2 GFSK
Sensitivity -112dBm@baud 1.2K bps
Control System PLL
Antenna Impedance 50 ohms
Typical Response Time for Commands 50ms ~ 100ms
Input Power (AC) 24 ~ 240V AC - 50/60Hz
Input Power (DC) 24 ~ 160V DC
Power Consumption AC : 8.3W - DC : 12.8W
Power System Switching
Antenna External
Standby Power 0.97W
Operating Temperature (-4ºF) – (+131ºF)
Storage Temperature (-40ºF) – (+158ºF)
Dimensions 7.46" x 7.22" x 2.52"
Remote Control Channel 17
Housing Material PA6 (30% Glass Filled)
Operating Altitude 2000m
Weight N/A
Dimensions N/A
Brand

Motion

, , ,

Series

Speed Type

Reviews

There are no reviews yet.

Be the first to review “INMOTION Variable Speed Radio Remote Control System”

Your email address will not be published. Required fields are marked *

FAQs

  • How do I replace my transmitter?

    If you order a new transmitter from us to replace your old one, we will program your new transmitter to work out of the box with your system.

  • What does "step" mean?

    “Step” is the term used to refer to the number of different lifting speeds a hoist has. Sometimes the term “speed” is used instead of “step.” A single step (or single speed) hoist can only lift at the speed that it was originally programmed. A two step (or two speed) hoist can be programmed to lift at a slower speed and faster speed. A variable speed hoist has a lift speed that can be adjusted on the fly by the hoist operator with only the twist of a knob.

  • What does "motion" mean?

    “Motion” is the term used to refer to how many different components a radio can control. A 1 motion radio is used to control a hoist. A 2 motion radio is used to control a hoist and trolley. A 3 motion radio is used to control a hoist, trolley, and a bridge. Radios with 4 or more motions are for more advanced applications where the operator wants control multiple hoists, trolleys, or bridges all at the same time.

  • If my transmitter is not working, what should I check?

    The most often case is that the batteries are dead. To get the most out of your battery life, make sure to turn off the transmitter when not in use.
