INMOTION Variable Speed Replacement Transmitter

Price range: $1,096.00 through $1,264.00

Radio Information

This information is needed to make sure the transmitter (remote) works with your receiver. If you cannot read the ID Number or Channel Number on the transmitter it will also be on the receiving unit.

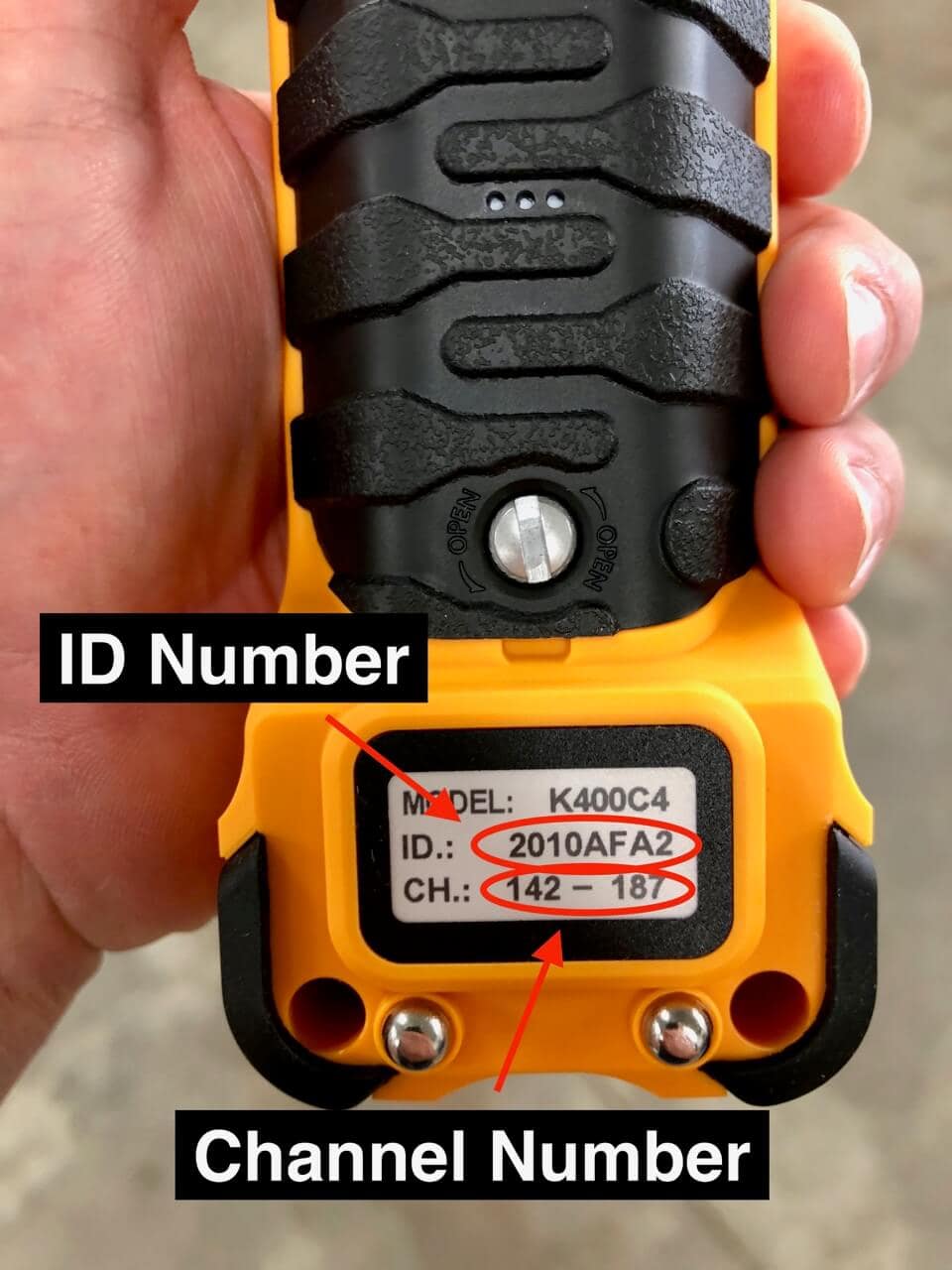

View Image of Serial Number and Channel Number Location

  • Serial Number *

    If your transmitter connects to tandem receivers separate the two IDs by a comma. The first ID you enter will be #1 and the second will be #2.Max: 50 characters

  • Channel Number *

    If your transmitter connects to tandem receivers separate the two channels by a comma. The first channel you enter will be #1 and the second will be #2.Max: 50 characters

Product total

Options total

Grand total

Lead Time: Ships in
 business days from PWI
SKU: Categories: Controls, Radios, INMOTION Replacement TransmittersBrand: InMotion
INMOTION Variable Speed Radio Transmitters

Can't find what you're looking for?

Contact us today if you need a custom solution.

INMOTION Variable Speed Replacement Transmitter

Replacement transmitter for the InMotion Variable Speed Remote Control System.

InMotion Variable Speed Transmitter Specs

Frequency 902.5 ~ 927.5 MHz
Modulation Method 2 GFSK
Typical Operating Range 300 ft. (100M)
Control System PLL (Phase Lock Loop)
Antenna Impedance 50 ohms
Typical Response Time for Commands 50ms – 100ms
Power Supply AA(HR6) Ni-MH x 2
Antenna Internal
Average Power Consumption [email protected] dc (default setting)
Radio Frequency Power <15dBm (default setting)
Operating Temperature (-4ºF) - (131ºF) / (-40ºF) - (149ºF)
Protection Degree IP65
Housing Material PA6(30% Glass Fiber)
Overall Dimension 7.63" x 2.25" x 2.00" (2-8 Buttons)
Weight N/A
Dimensions N/A
Brand

Motion

, , ,

Series

Reviews

There are no reviews yet.

Be the first to review “INMOTION Variable Speed Replacement Transmitter”

Your email address will not be published. Required fields are marked *

FAQs

  • How do I replace my transmitter?

    If you order a new transmitter from us to replace your old one, we will program your new transmitter to work out of the box with your system.

  • What does "step" mean?

    “Step” is the term used to refer to the number of different lifting speeds a hoist has. Sometimes the term “speed” is used instead of “step.” A single step (or single speed) hoist can only lift at the speed that it was originally programmed. A two step (or two speed) hoist can be programmed to lift at a slower speed and faster speed. A variable speed hoist has a lift speed that can be adjusted on the fly by the hoist operator with only the twist of a knob.

  • What does "motion" mean?

    “Motion” is the term used to refer to how many different components a radio can control. A 1 motion radio is used to control a hoist. A 2 motion radio is used to control a hoist and trolley. A 3 motion radio is used to control a hoist, trolley, and a bridge. Radios with 4 or more motions are for more advanced applications where the operator wants control multiple hoists, trolleys, or bridges all at the same time.

  • If my transmitter is not working, what should I check?

    The most often case is that the batteries are dead. To get the most out of your battery life, make sure to turn off the transmitter when not in use.
