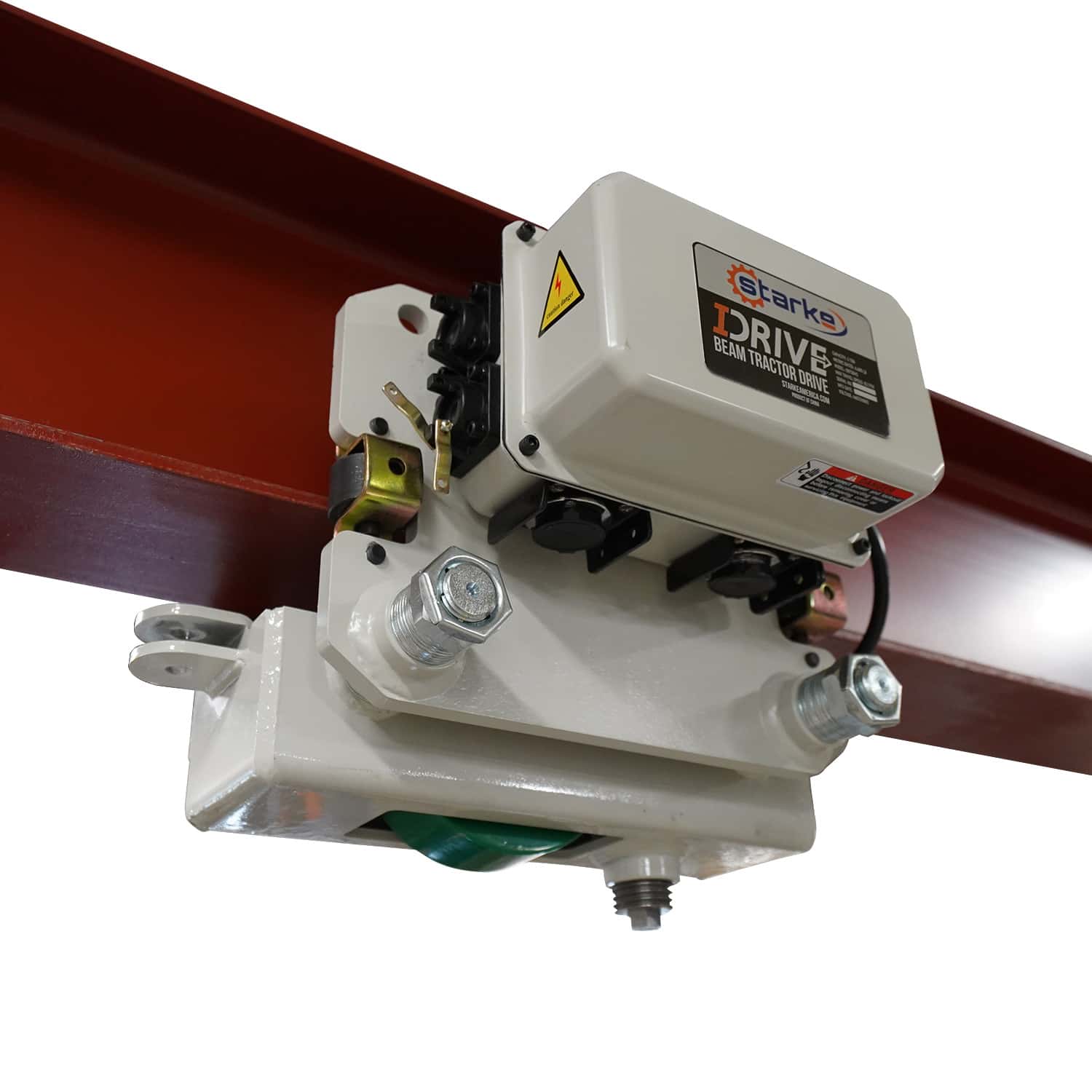

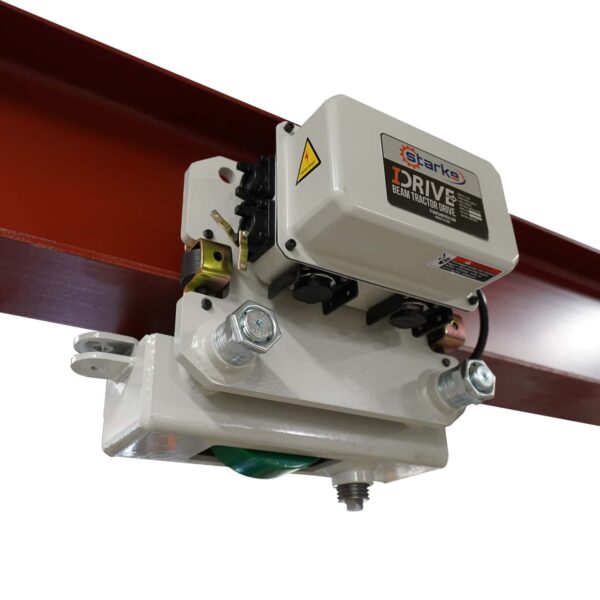

Starke I-Drive Motorized Tractor Drive

Starke I-Drive Motorized Tractor Drive

Motorize any manual system of the past. Add to old manual end trucks and create a motorized bridge crane, or simply tow a hoist.

Specs

• Capacity: 3 Ton
• Flange Width: 4″ – 8″
• Travel Speed: 82/14 FPM
• Motor: 1 HP
• Voltage Options
  • 460V 3-Phase (Standard)
  • 208V/230V 3-Phase (Optional Upgrade)
  • 230V Single Phase (Optional Upgrade)

Features

VFD Control

The Variable Frequency Drive can regulate the motor’s speed and torque, enabling smooth acceleration and deceleration with precise control.

Support Up 12″ Beams

With the flange width adder, you can connect safely to beams up to 12″. Standard max width (without the adder) is under 9″.

Poly Coated Drive & Tensioner Wheel

The drive wheels and tensioner wheels are poly coated to provide maximum traction.

Tensioning System

Spring adjustment of the tensioner allows for maintained performance across the life of the unit.
