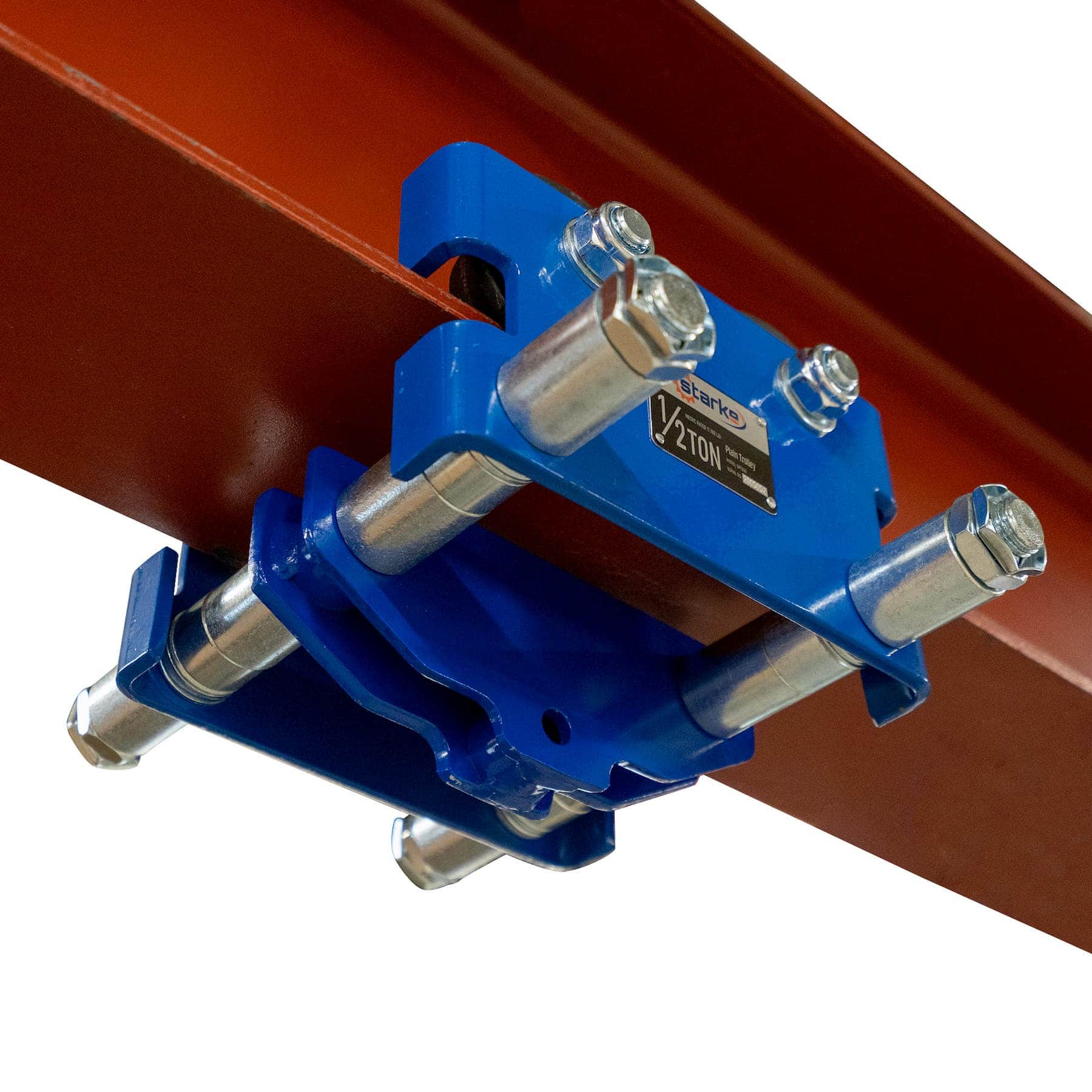

Starke Low Headroom Plain Trolley

Starke Low Headroom Plain Trolley

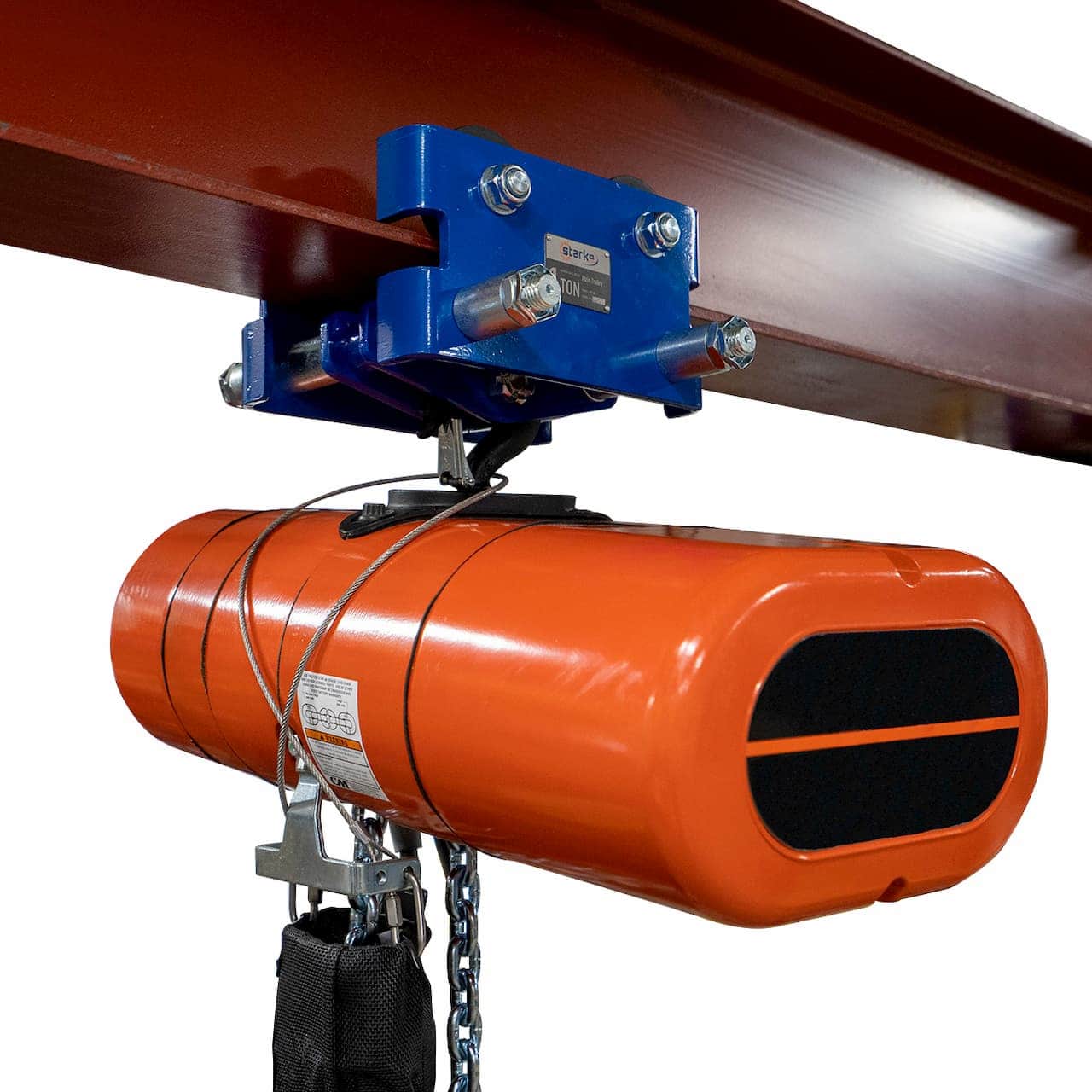

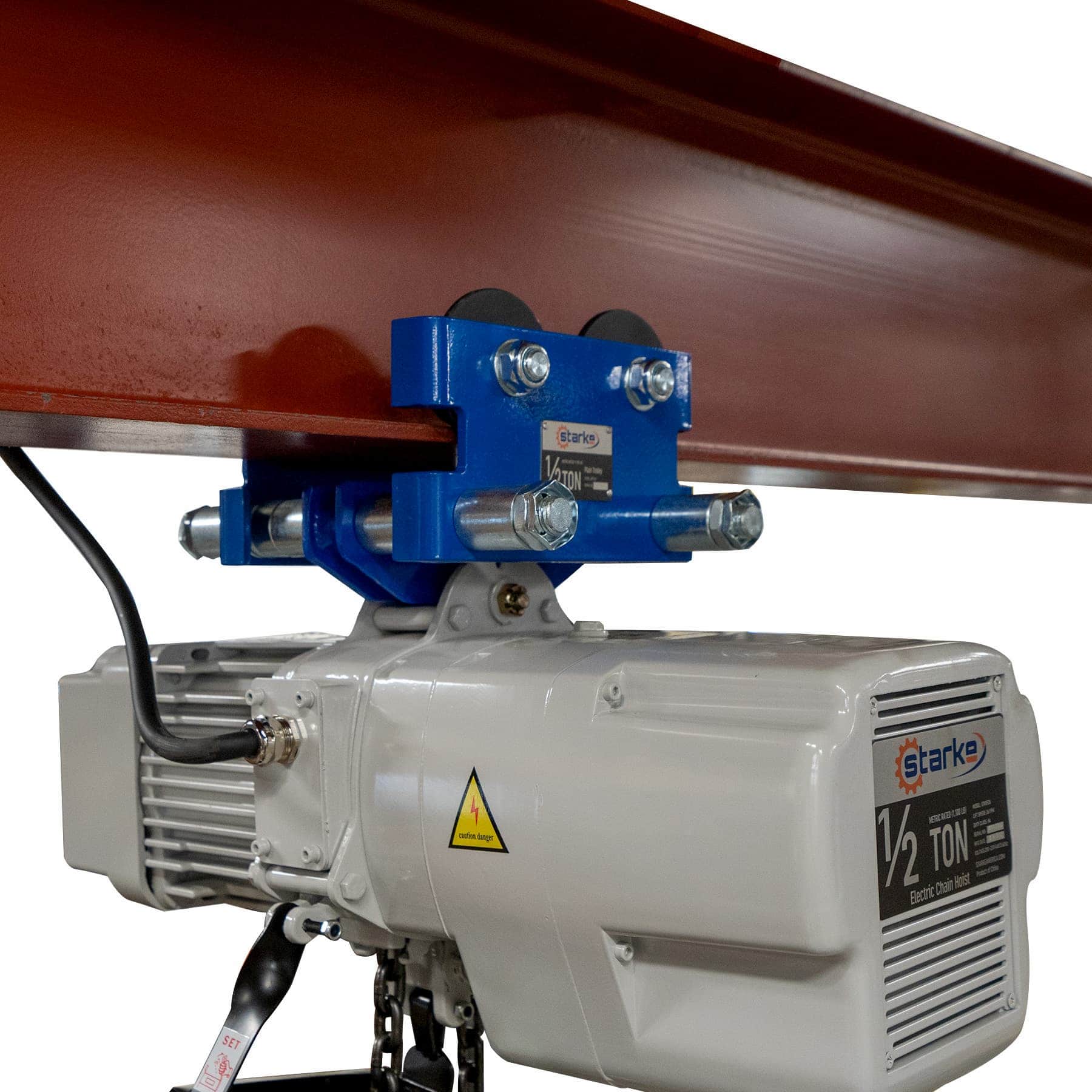

The Starke Low Headroom Plain Trolley is the perfect manual push trolley for all your lifting needs. You’ll be able to easily attach any hook-mounted hoist, no matter if it’s manual or powered. You’ll be able to move metric-rated capacities up to 4,000 lbs – all with a simple push of the beam trolley.

Smooth Trolley Wheels

This plain trolley features machined trolley wheels with precision bearings. You’ll have smooth rolling on any beam.

Long Lasting

The Starke Low Headroom Plain Trolley has quality steel and a durable paint finish. As a result, you’ll have a trolley that will be able to withstand a lifetime of heavy-duty lifting. You’ll have the ultimate plain trolley that is durable, reliable, and easy to use.

Offered in 3 Mounting Types

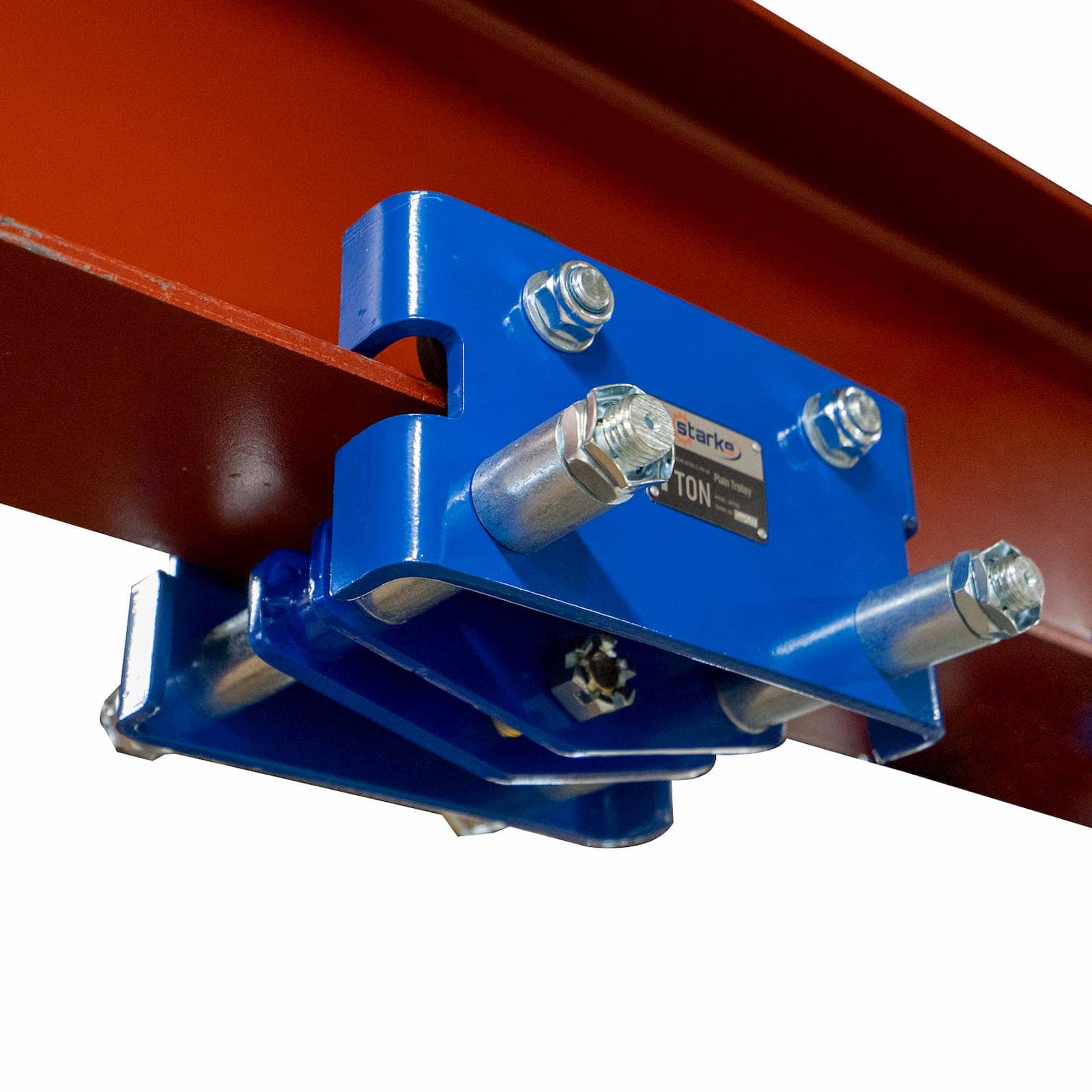

Clevis Mount: For any brand hoist utilizing a hook type suspension and wanting to get the max headroom.

Lug Mount: Exclusively for Starke STK and Blitz Series hoists, utilizing the factory hardware.

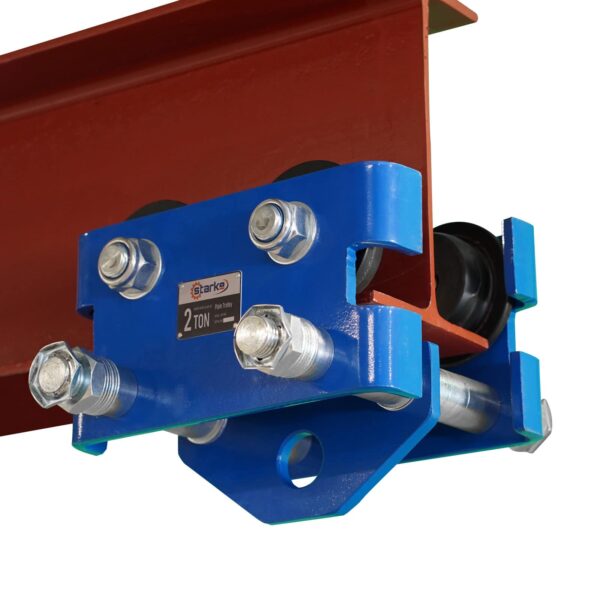

Hook-Type Mount: For any brand hoist utilizing a hook type suspension, but not necessarily requiring the max headroom.

Features

• Capacity: ¹⁄₂ Ton, 1 Ton, & 2 Ton
• Metric Rated Capacity
• Flange Width
  • ¹⁄₄ Ton: 2″ – 8-13/16″
  • ¹⁄₂ Ton: 2″ – 8-13/16″
  • 1 Ton: 3″ – 8-13/16″
  • 2 Ton: 3″ – 8-13/16″
• Machined Trolley Wheels with Precision Bearings
• Minimum Beam Height
  • ¹⁄₄ Ton: 4″
  • ¹⁄₂ Ton: 4″
  • 1 Ton: 5″
  • 2 Ton: 6″
• Minimum Radius Curve
  • ¹⁄₄ Ton: 27″
  • ¹⁄₂ Ton: 27″
  • 1 Ton: 36″
  • 2 Ton: 45″
• Durable Paint Finish

For more information about Starke, visit starkeamerica.com.

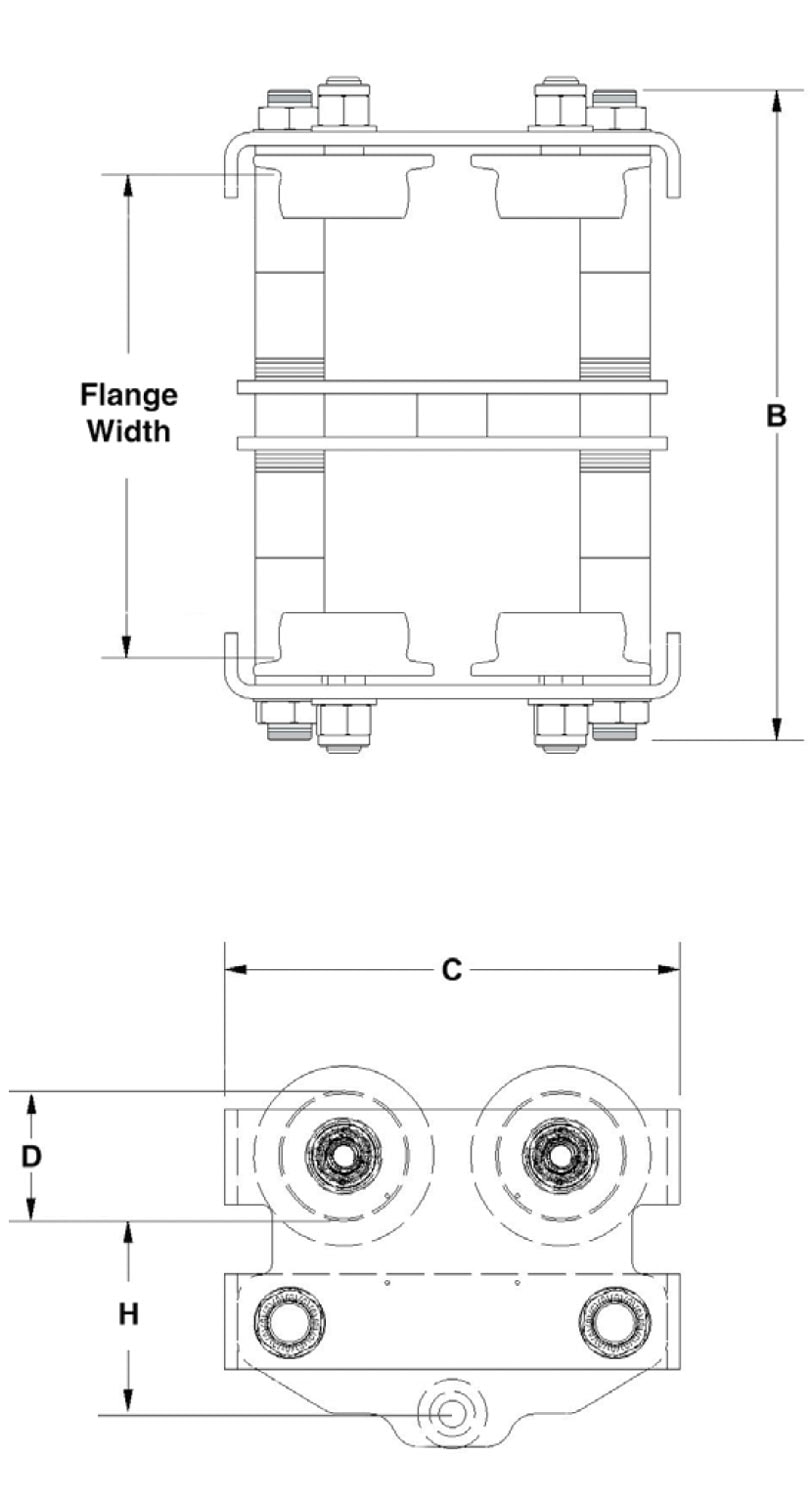

Starke SPT Series Dimensions
