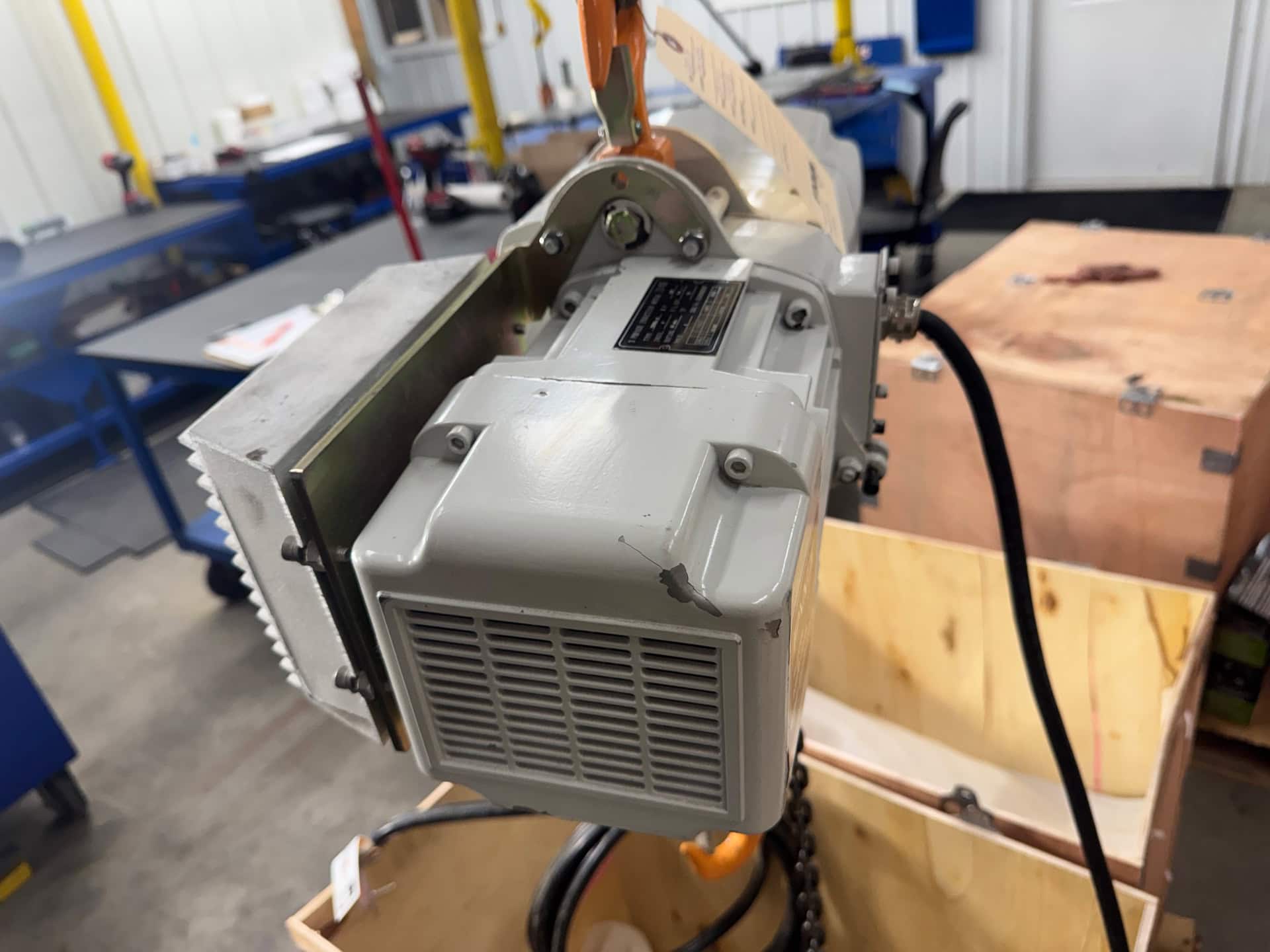

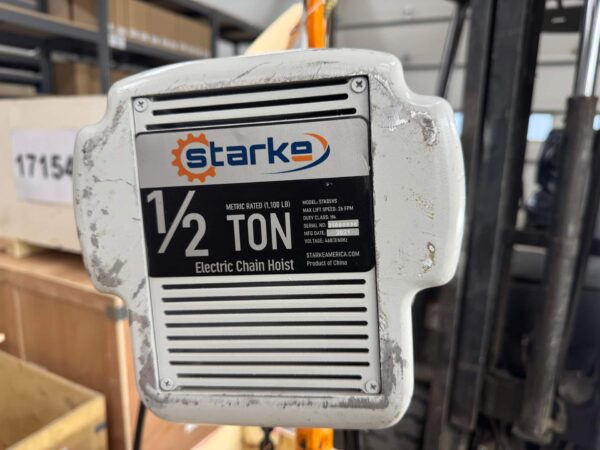

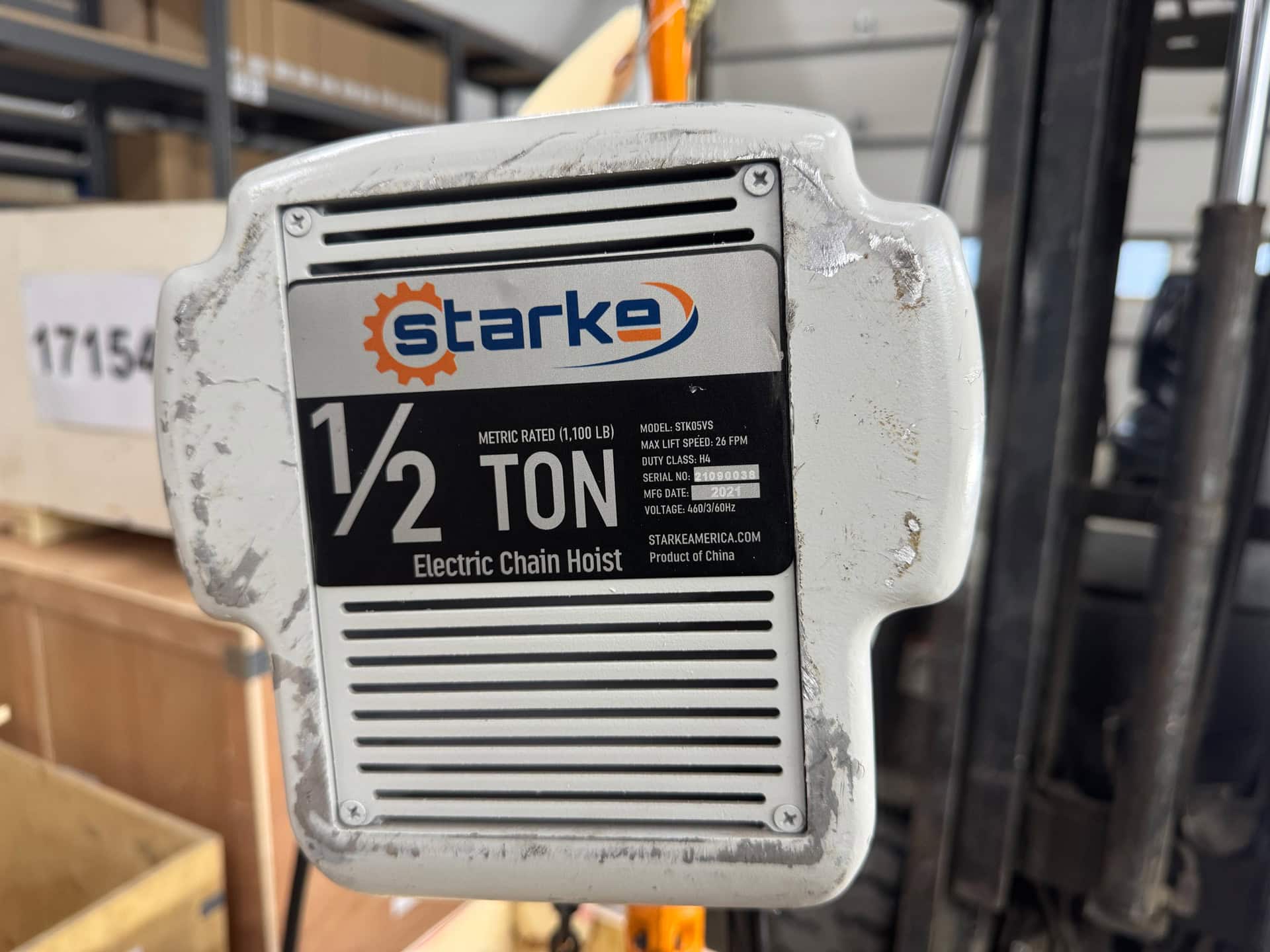

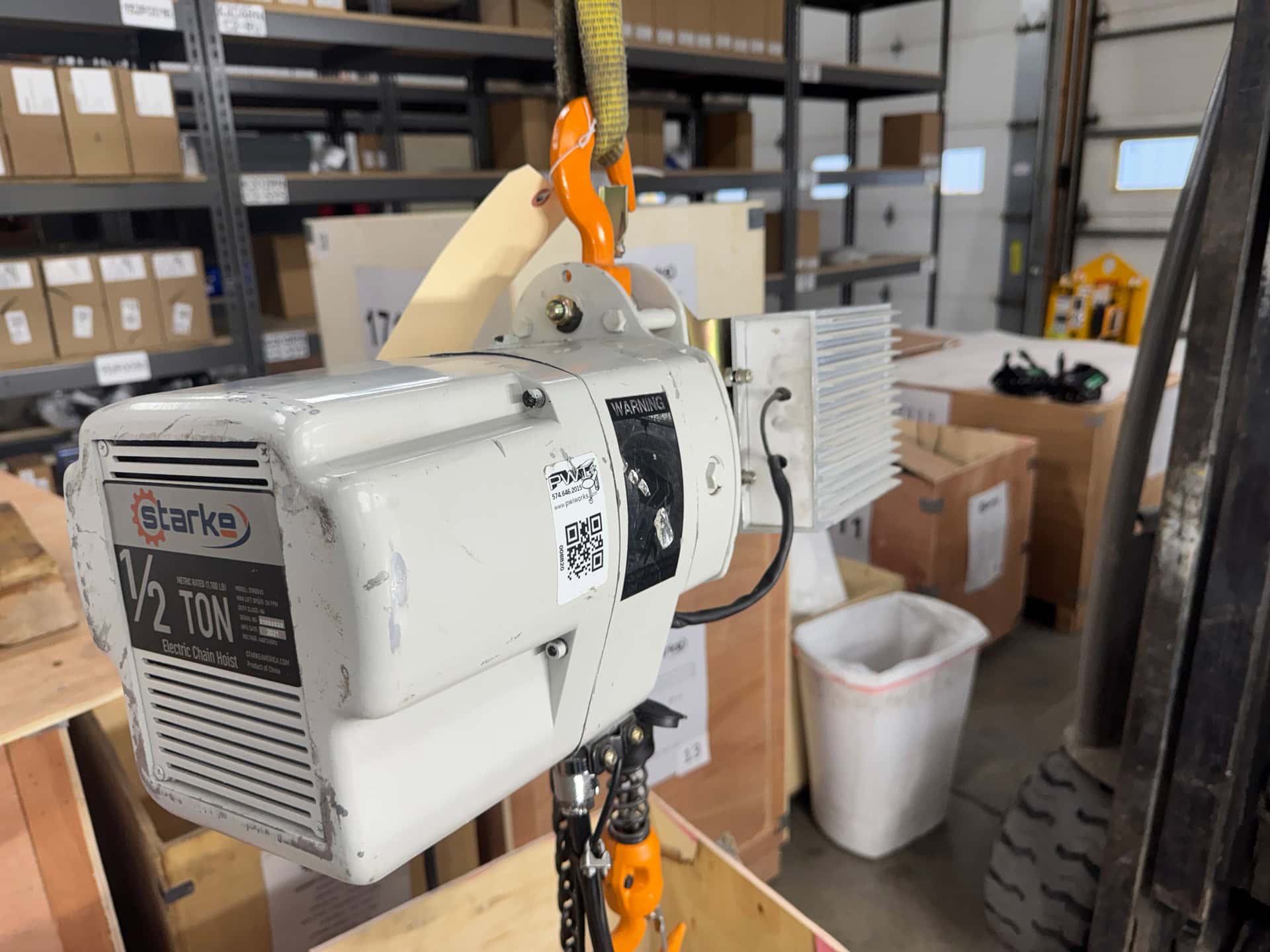

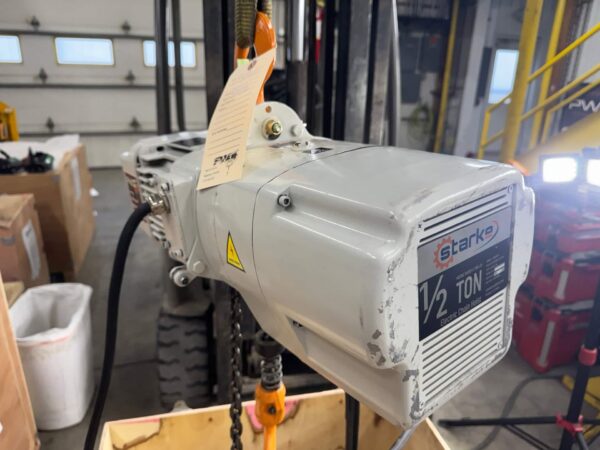

Starke VS Electric Chain Hoist
- Capacity: 1⁄2 Ton
- Voltage: 230V/460V 3-Phase
- Variable Speed Lift: 2 – 26 FPM
- Lift: 20′
For Everyone
The Starke Variable Speed VS Electric Chain Hoist provides unmatched performance and ease-of-use. Its accessibility and ergonomic controls means anyone can use it. This electric chain hoist has capacities ranging from 1/2 Ton to 3 Ton. As a result, you’ll be able to get the job done no matter if you are working on an assembly line or in a maintenance garage.
Work Fast
Maximize your productivity and efficiency with variable speed control. This electric chain hoist has variable lifting speeds ranging from 2 – 26 FPM. That means you will have ultimate control and precision while operating. Use the easy to turn dial to adjust the speed even while your hoist is in motion.
Versatile
The Starke Variable Speed VS Electric Chain Hoist can be easily added to any existing workstation. You’ll be able to add the hook attachment to any manual or motorized trolley. For even better performance, pair it with the Starke Low Headroom Plain Trolley or Starke VS Motorized Trolley.
Go Wireless
All Starke Electric Chain Hoists are compatible with Starke Echo Radio Remote Control Systems. If purchased together, your electric chain hoist will be wireless and ready to use right out of the box.
Features
- Metric Rated Capacity
- Duty Class: H4
- Voltage: 460/3/60Hz
- Japanese FEC Grade #80 Lifting Chain
- NSK Main Bearings
- Quick-Connect Pendant Controls
- Durable Canvas Chain Container
- Paddle Type Limit Switch for Up/Down Travel
For more information about Starke, visit starkeamerica.com.
Starke VS Electric Chain Hoist Motor Horsepower & Amp Information
Starke VS ECH HP & Amp Info
| Capacity | Horsepower | Amps |
| 1/2 Ton | 1 | 1.9 |
| 1 Ton | 2 | 6.5 |
| 2 Ton | 4 | 6.3 |
| 3 Ton | 4 | 6.3 |
STK VS Series Dimensions
| Dimensions | Headroom Dimensions | |||||||||
| SKU | A | B | C | D | E | F | G | J | (I) Lug Pin | (H) Standard |
| STK05VS | 23 9/16" | 13 1/16" | 10 1/2" | 13 5/16" | 4 7/8" | 7 1/4" | 1 1/8" | 1 1/8" | 17 15/16" | 21 15/16" |
| STK10VS | 24 5/8" | 12 13/16" | 11 13/16" | 12 1/8" | 4 15/16" | 7 3/16" | 1 1/4" | 1 1/4" | 18 5/8" | 23 1/4" |
| STK20VS | 28 13/16" | 15 5/16" | 13 1/2" | 17 9/16" | 6 5/16" | 11 1/4" | 1 1/2" | 1 1/2" | 21 13/16" | 27 11/16" |
| STK30VS | 28 15/16" | 15 7/16" | 13 1/2" | 17 1/2" | 6 3/8" | 9 15/16" | 1 3/4" | 1 3/4" | 27 5/8" | 31 13/16" |
