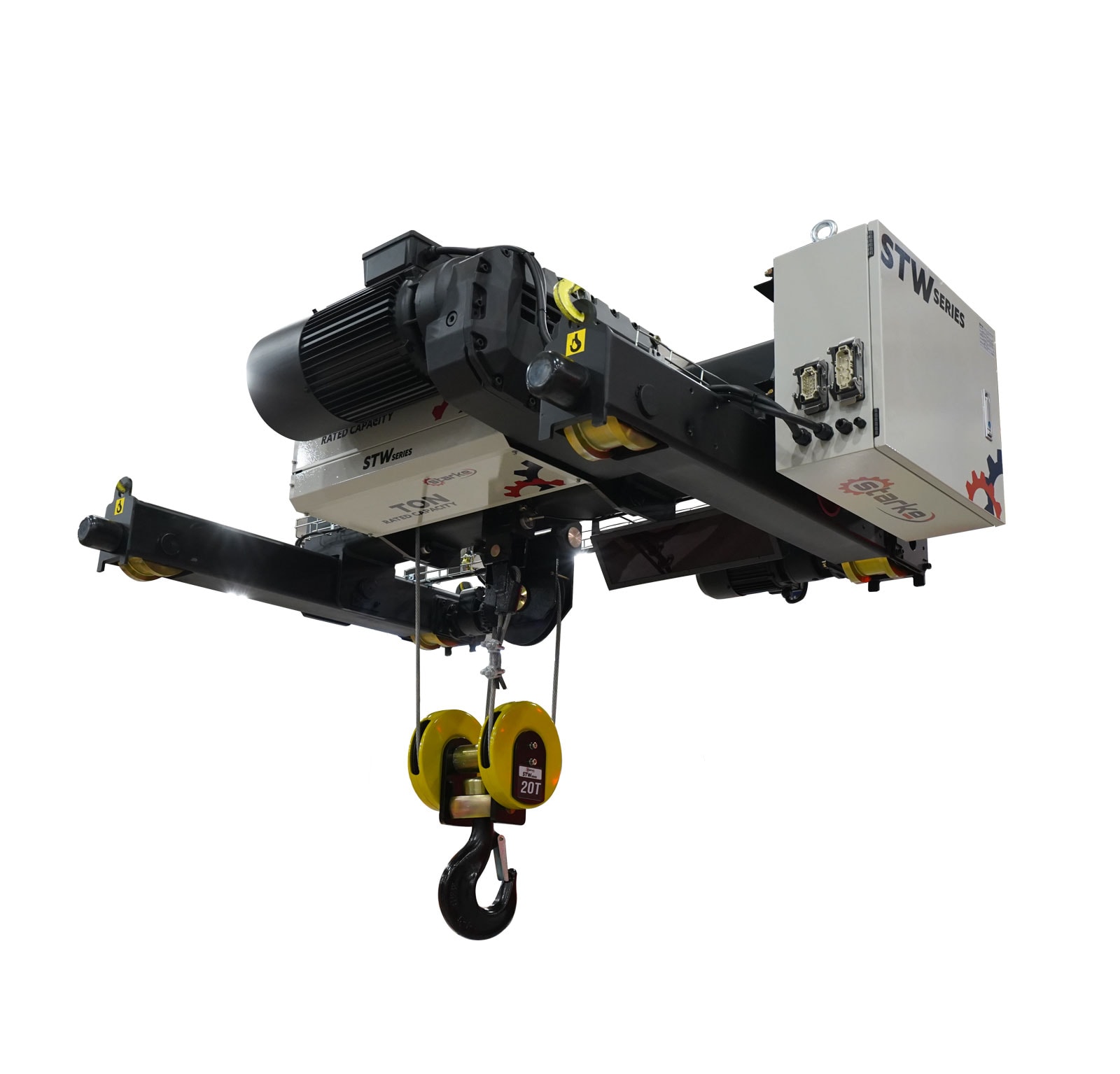

Starke Top Running Wire Rope Hoist – STW Series
Features
- 7.5 Ton – 20 Ton Capacity
- Travel Speed: 75/20 FPM
- H4 Rated
- All models include Load Cell with 3″ LED Display showing live load pounds
2 Speed Lifting Gear Motor
The lifting motor contains 2 lifting speeds. You can improve efficiency or precision by easily adjusting the speed.
- 7 1/2 Ton Model: 20/4 FPM, 13 HP
- 10 Ton Model: 20/4 FPM, 13 HP
- 15 Ton Model: 20/4 FPM, 25 HP
- 20 Ton Model: 20/4 FPM, 25 HP
Rope Alignment System
The rope drum is deeply grooved to ensure optimal rope line arrangement. You will experience better safety and increased durability.
Easy-to-Read Load Indicator
An LED Load Indicator comes with all SMW Series models. You will be able to know exactly how much weight you are lifting.
Overload Protection
Each hoist is equipped with Overload Protection. This ensures safety for your workers and will increase the lifespan of your wire rope hoist.

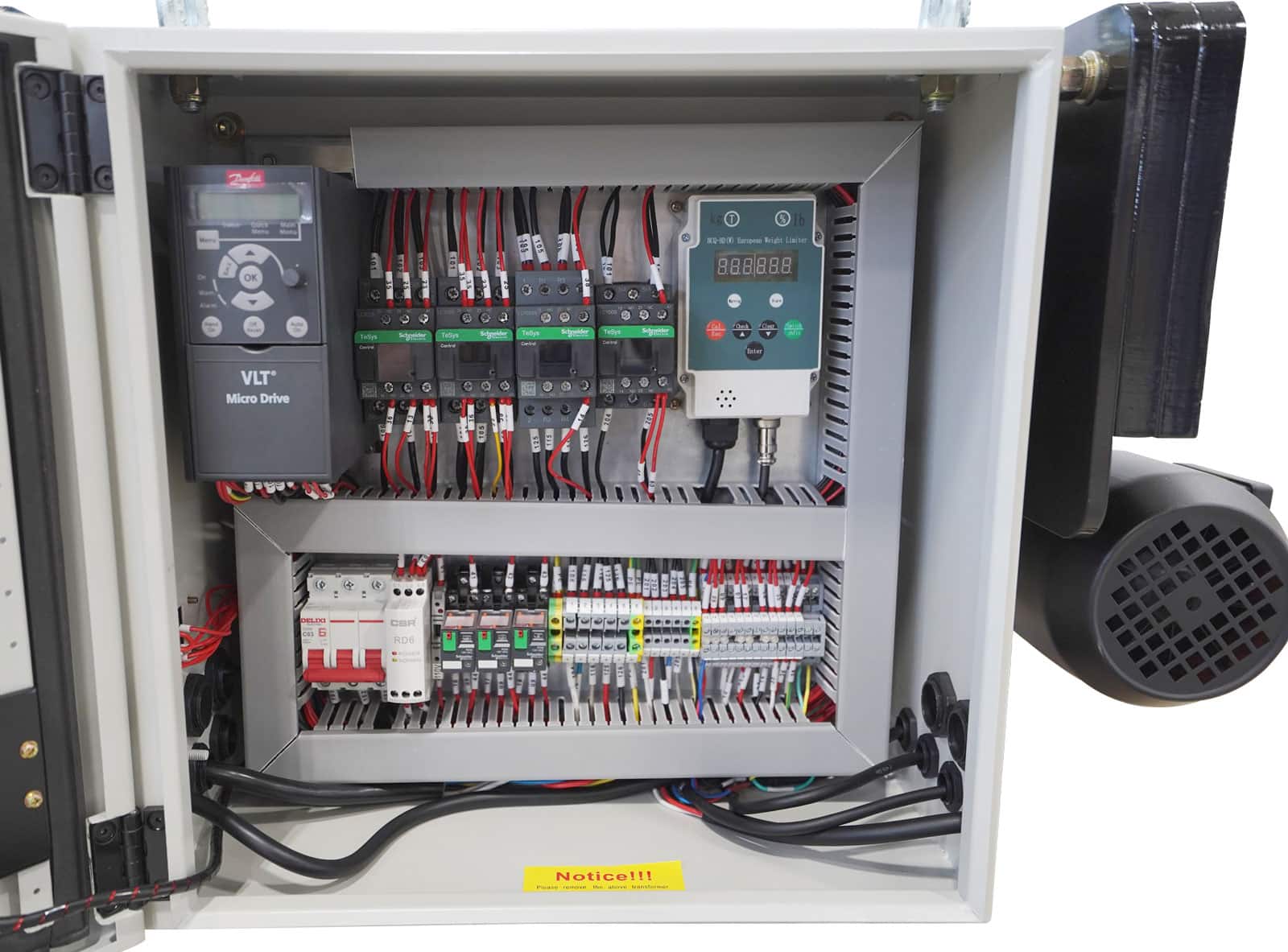

Control Panel
High-quality NEMA 35 control panel. Includes phase protection, motor overheating protection, as well as transformer circuit fuse protection. Includes Danfoss VLT Microdrive to control trolley travel speed allowing adjustable smooth ramp-up options.
- Infinite Speed Adjustment
- Improves Load Control
- Soft Start & Stop
- Adjustable Ramp Up & Down Control of Trolley Motion
- Adjustable High & Low Trolley Motion and Lifting Speeds

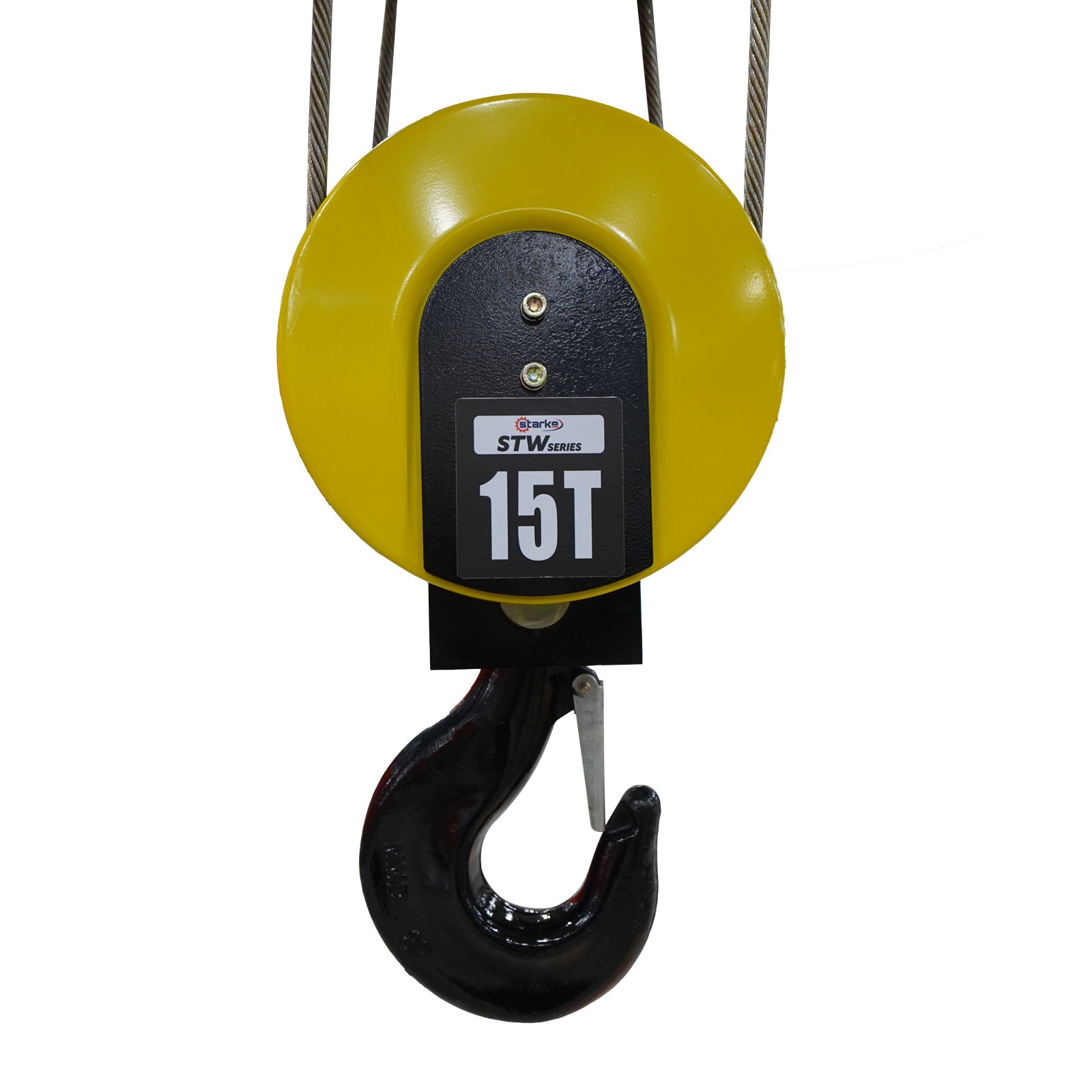

4-Part Reeved Hook Block
Robust all-metal lower hook assembly designed for many years of operation even in tough environments. Includes easy-to-remove covers for maintenance and wire rope replacement. The Hook is designed to swivel 360 degrees for convenient load attachment.
For more information about Starke, visit starkeamerica.com.

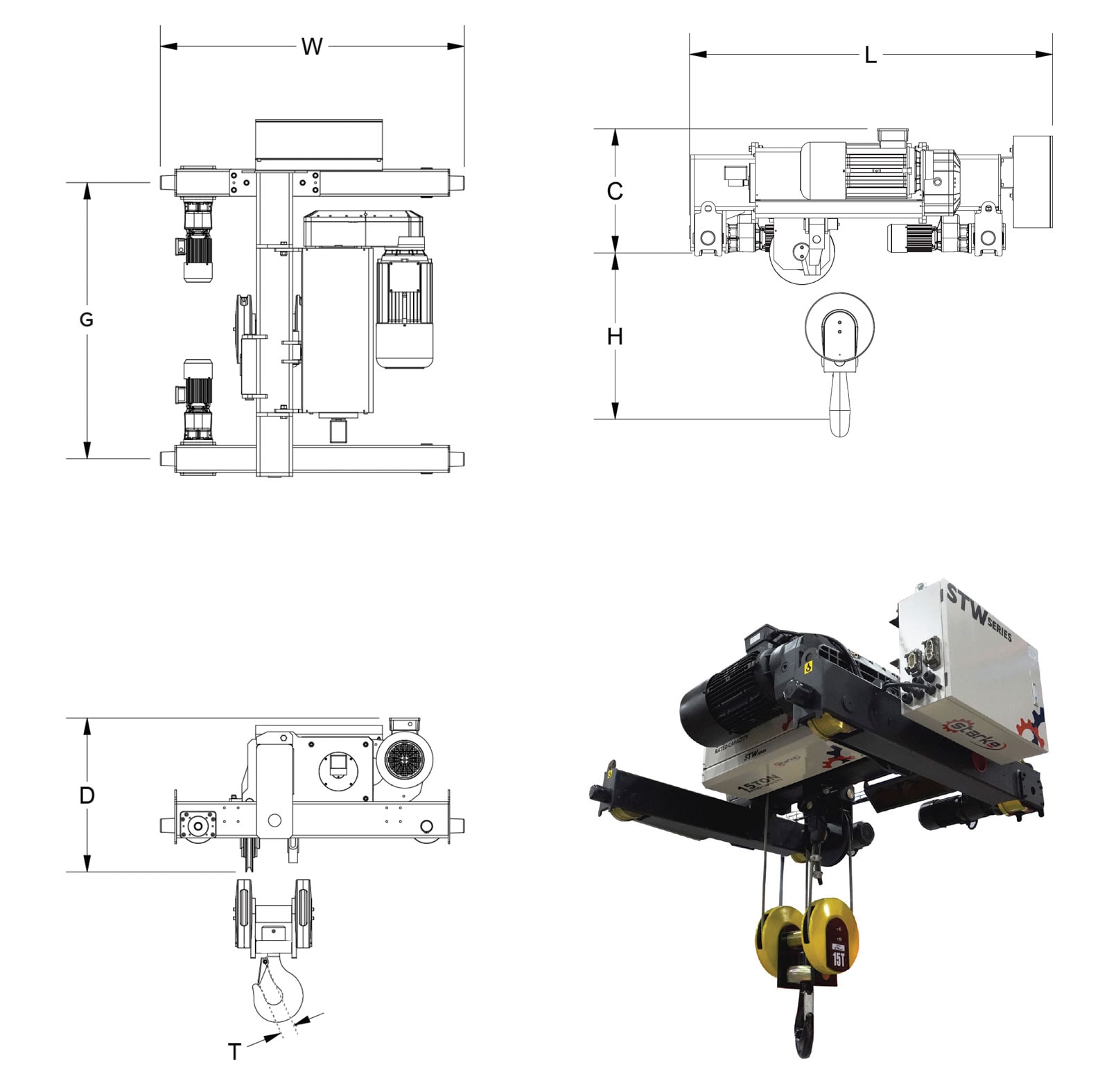

STW Series Wire Rope Hoist Dimensions
| SKU | C | D | G | L | H | T | W |
| STW0720 | 21 13/16" | 26 1/2" | 60" MIN | 77 3/16" | 28 3/4" | 2 1/4" | 54 3/16" |
| STW1020 | 21 13/16" | 26 1/2" | 60" MIN | 77 3/16" | 28 3/4" | 2 1/4" | 54 3/16" |
| STW1520 | 26 5/8" | 33 3/8" | 60" MIN | 77 11/16" | 35 11/16" | 3" | 66" |
| STW2020 | 26 5/8" | 33 3/8" | 60" MIN | 77 11/16" | 35 11/16" | 3" | 66" |
