INMOTION Classic Lite Radio Remote Control System

1 customer review

The most economical Radio Remote Control System. This single speed system is easy to use with options for 1, 2, and 3 motion control.

Price range: $419.00 through $923.00

In stock

SKU: CP-SYSCategories: Controls, Radios, Radio Remote Control SystemsBrand: InMotion
INMOTION Pocket Radio Remote Control
INMOTION Classic Lite Radio Control System Specifications
INMOTION Classc Lite Radio Transmitter Specifications

Can't find what you're looking for?

Contact us today if you need a custom solution.

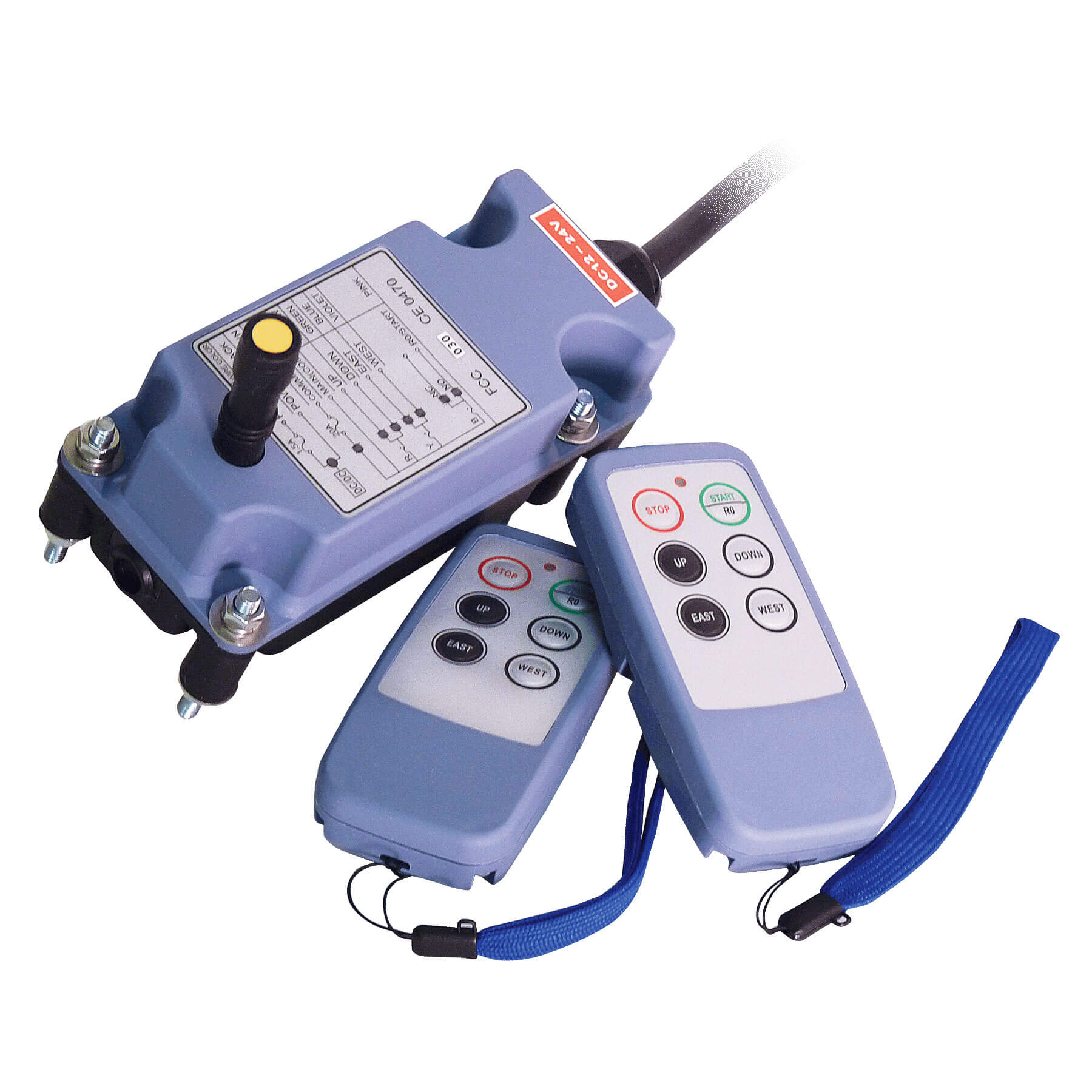

INMOTION Classic Lite Radio Control System

Small But Mighty

The INMOTION Classic Lite Radio Control System is the smallest system offered. It can even fit in your pocket, but don’t let the compact design fool you. The IP65 rated fiberglass enclosure will protect your system from dust and water.

Simple and Efficient

The simple layout of the Classic Lite Radio Control makes the buttons easy for you to understand and operate. It has 2 AA batteries that last up to 3 months. This means you will spend less time swapping batteries and more time getting things done.

Lite and Portable

The INMOTION Classic Lite Radio Control System is the lightest system available. Weighing in at only 3 ½ ounces, the Lite Radio Control gives you the portability that you need.

Features

  • Lightweight, Small and User Friendly
  • Low Power Consumption
  • 300 Feet Line of Sight Nominal Operating Distance
  • Advanced RF with Over 4.1 Billion ID Codes
  • Shock Resistant Mounting Feet
  • Ideal for Mobile and Light-Duty Industrial Equipment

Configurations

You can quickly and easily configure your Classic Lite Radio Control to meet your needs.

All configurations feature an On button and an Off button at the top of the radio

  • The 4 Button Classic Lite Radio has a single function (or motion). Used to move a monorail hoist up/down.
  • The 6 button Classic Lite Radio is for two functions (or motions). Used to move a move a motorized trolley along a monorail and a hoist up/down.
  • The 8 button Classic Lite Radio is for three functions (or motions). Used to control motorized end trucks, move a motorized trolley along a bridge, and to move a hoist up and down.

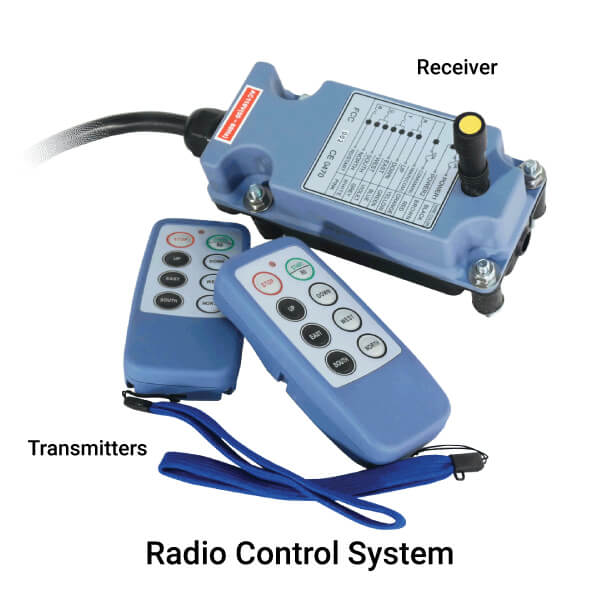

What’s Included?

  • One receiving unit
  • Two transmitters with lanyards and button covers
  • Batteries
  • Mounting hardware
  • Installation instructions

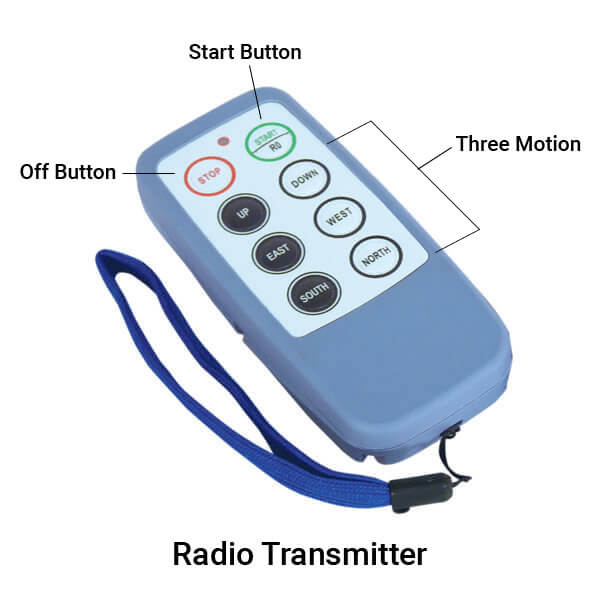

InMotion Classic Lite Transmitter Specs

Frequency 310 MHz
Modulation Method 4 FSK
Typical Operating Range 300 ft. (100M)
Power Supply 2 X 1.5V “AA” Battery
Average Power Consumption 10mA Averager
Operating Temperature -49F to + 176F
Protection Degree IP65
Housing Material Fiberglass / ABS
Overall Dimension 4.72 x 2.17 x 1 Inches

InMotion Classic Lite Receiving Unit Specs

Frequency 310 MHz
Control System Crystal
Power Supply 110~120 VAC (Standard)12/24 VDC (Optional)
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material Fiberglass / ABS
Overall Dimensions 6.34 x 2.91 x 2.05 Inches
Installation and Mounting Four Bolt

Weight 5.8 lbs
Dimensions 12 × 10.75 × 3.75 in
Brand

Buttons

, ,

Country of Origin

Motion

, ,

Series

Voltage

, ,

Warranty

  1. Joe –

    Great product for the price. Install was simple. Universal design means tons of applications. Tech support was able to help me out with a wiring diagram as well.

Add a review

Your email address will not be published. Required fields are marked *

FAQs

  • How do I replace my transmitter?

    If you order a new transmitter from us to replace your old one, we will program your new transmitter to work out of the box with your system.

  • What does "step" mean?

    “Step” is the term used to refer to the number of different lifting speeds a hoist has. Sometimes the term “speed” is used instead of “step.” A single step (or single speed) hoist can only lift at the speed that it was originally programmed. A two step (or two speed) hoist can be programmed to lift at a slower speed and faster speed. A variable speed hoist has a lift speed that can be adjusted on the fly by the hoist operator with only the twist of a knob.

  • What does "motion" mean?

    “Motion” is the term used to refer to how many different components a radio can control. A 1 motion radio is used to control a hoist. A 2 motion radio is used to control a hoist and trolley. A 3 motion radio is used to control a hoist, trolley, and a bridge. Radios with 4 or more motions are for more advanced applications where the operator wants control multiple hoists, trolleys, or bridges all at the same time.

  • If my transmitter is not working, what should I check?

    The most often case is that the batteries are dead. To get the most out of your battery life, make sure to turn off the transmitter when not in use.
