INMOTION K Plus Series Radio Remote Control System

The most advanced Radio Remote Control System available including wireless charging. Available from 1 to 6 motion control and 1 or 2 speed.

Price range: $1,139.00 through $2,822.00

SKU: K-PLUS-SYSCategories: Controls, Radios, Radio Remote Control SystemsBrand: InMotion

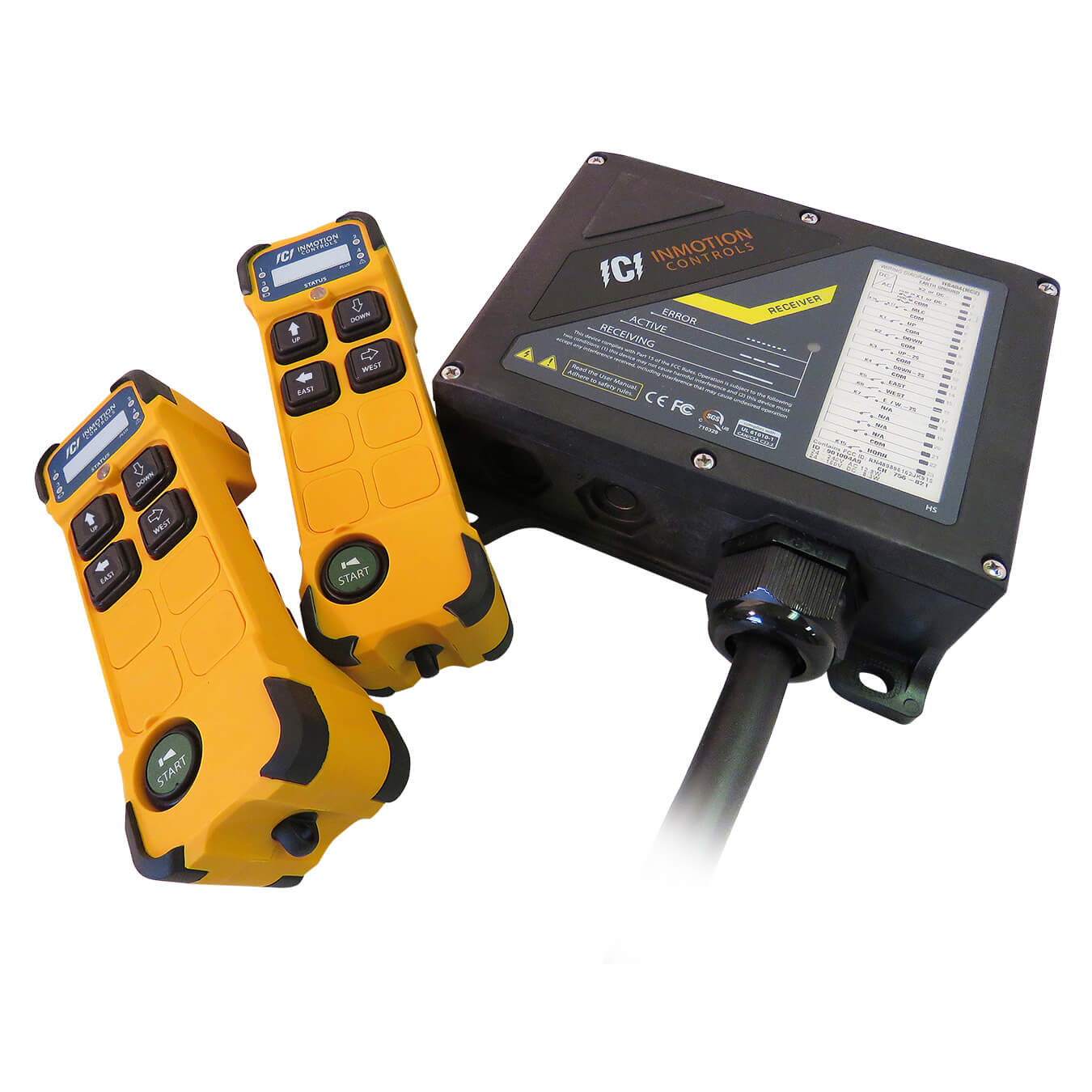

INMOTION K400 Plus System Radio Remote Control

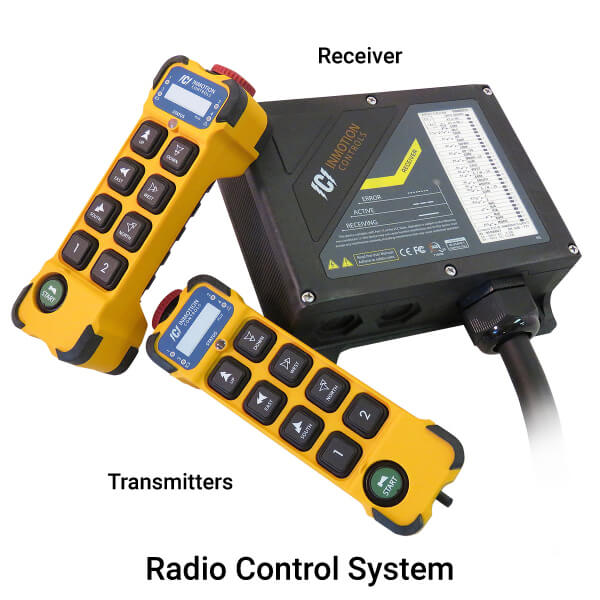

INMOTION K Plus Series Radio Control System

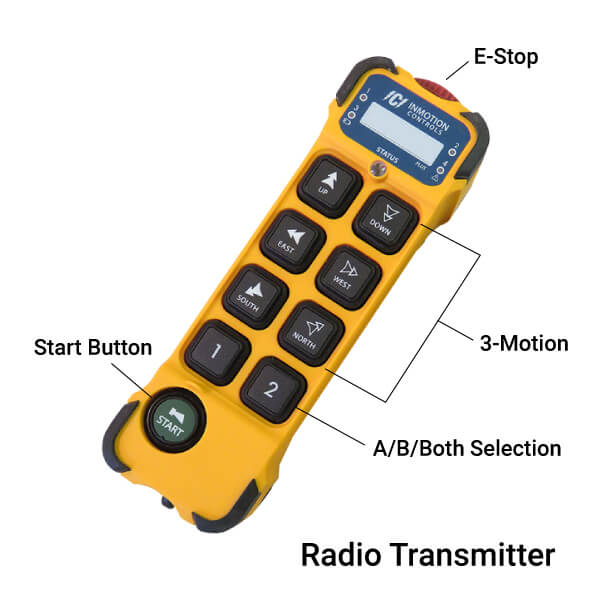

INMOTION K Plus Series Radio Transmitter Specifications

Can't find what you're looking for?

Contact us today if you need a custom solution.

INMOTION K Plus Series: Better Control. Better Safety.

The INMOTION K Plus Series is the most advanced radio system available and now features wireless charging. The radio system is available from 1 to 6 Motion Control and 1 or 2 Speed.

Go Wireless

Tired of having unnecessary wires fill up your workspace? The INMOTION K Plus Series is now available with wireless charging, giving you a more organized workspace.

Safe Operation

An exclusive feature of the K Plus Series is its auto-stop drop detection. This means that the remote control can sense that it has been dropped, and it will automatically turn itself off. Additionally, the radio transmitter has an easily accessible stop (E-Stop) button at the top – giving you urgent control in the event of an emergency.

Ultimate Control

The INMOTION K Plus Series Radio Remote Control System contains a multi-frequency auto selection and bi-directional communication. This means you no longer have to manually select the frequency, the INMOTION K Plus Series does it for you. The system’s transmitter also has an Interactive LED System Display, letting you know what is being controlled.

Features

  • Complies with UL 61010-1 and CSA C22.2
  • “Qi” Wireless Charging Dock
  • G-Force Shock Detection with Disable
  • Operating Voltage 24–264 VAC or 24–160 VDC*
  • NiMH Transmitter Rechargeable Batteries Included
  • 900MHz FCC, IC, and CE Compliant
  • IP65, PA 6 Nylon — 30% Glass Filled Enclosure

What’s Included?

  • 1 Receiving Unit (24 to 160 VAC or VDC Control Voltage (UL/CSA Approved)
  • 2 Transmitters
  • 4 AA Rechargeable Batteries
  • 2 Button Covers
  • 2 Lanyards
  • Mounting Hardware
  • Installation Manual
  • Qi Charger

InMotion K Plus Series Transmitter Specs

Frequency 902.5 – 927.5 MHz
Modulation Method 2GFSK
Typical Operating Range 300 Feet (100 Meters)
Power Supply 2 x 1.5V NiMH “AA” Battery
Average Power Consumption 38 mA @ 2.5 VDC
Operating Temperature -40° – 149°F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
K200 – K1010 Dimensions 193mm x 57mm x 51mm
K1212 Dimensions 272mm x 260mm x 96mm

InMotion K Plus Receiving Unit Specs

Frequency 902.5 – 927.5 MHz
Control System PLL
Power Supply 24 – 240 VAC/24 – 160 VDC (auto-sensing)
Operating Temperature -40°F to 149°F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
K200 – K1010 Dimensions 190mm x 184mm x 64mm
K1212 Dimensions 272mm x 260mm x 96mm
Overall Installation and Mounting Single Bolt
Weight 5.8 lbs
Dimensions 12 × 10.75 × 3.75 in
Brand

Buttons

, , , , ,

Country of Origin

Motion

, , , , ,

Series

Warranty

Reviews

There are no reviews yet.

Be the first to review “INMOTION K Plus Series Radio Remote Control System”

Your email address will not be published. Required fields are marked *

FAQs

  • How do I replace my transmitter?

    If you order a new transmitter from us to replace your old one, we will program your new transmitter to work out of the box with your system.

  • What does "step" mean?

    “Step” is the term used to refer to the number of different lifting speeds a hoist has. Sometimes the term “speed” is used instead of “step.” A single step (or single speed) hoist can only lift at the speed that it was originally programmed. A two step (or two speed) hoist can be programmed to lift at a slower speed and faster speed. A variable speed hoist has a lift speed that can be adjusted on the fly by the hoist operator with only the twist of a knob.

  • What does "motion" mean?

    “Motion” is the term used to refer to how many different components a radio can control. A 1 motion radio is used to control a hoist. A 2 motion radio is used to control a hoist and trolley. A 3 motion radio is used to control a hoist, trolley, and a bridge. Radios with 4 or more motions are for more advanced applications where the operator wants control multiple hoists, trolleys, or bridges all at the same time.

  • If my transmitter is not working, what should I check?

    The most often case is that the batteries are dead. To get the most out of your battery life, make sure to turn off the transmitter when not in use.
