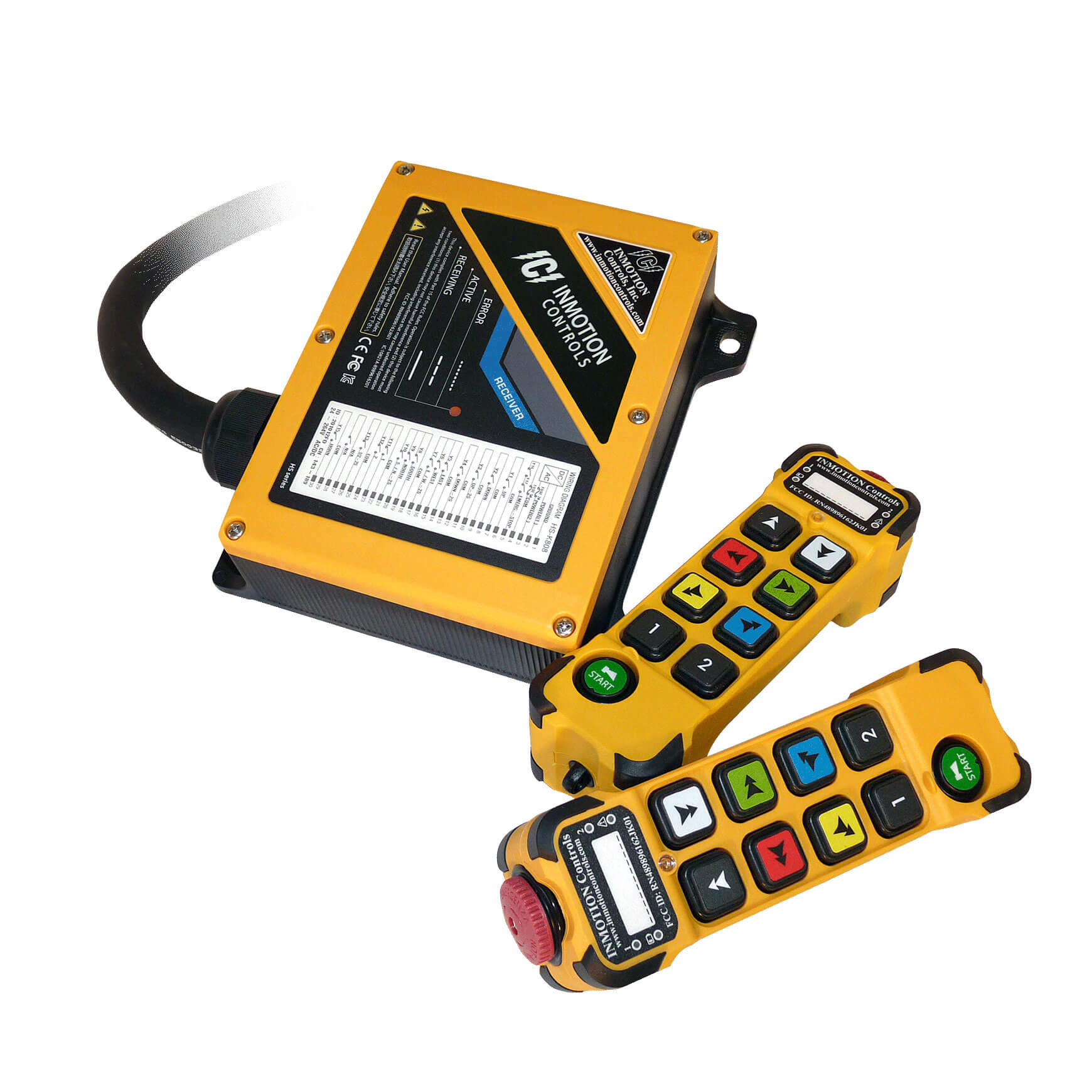

INMOTION K Series Radio Remote Control System

4 customer reviews

The most advanced Radio Remote Control System available. Available from 1 to 4 motion control and 1 or 2 speed.

Price range: $861.00 through $1,673.00

SKU: K-SYSCategories: Controls, Radios, Radio Remote Control SystemsBrand: InMotion
INMOTION K Series Radio Remote Control

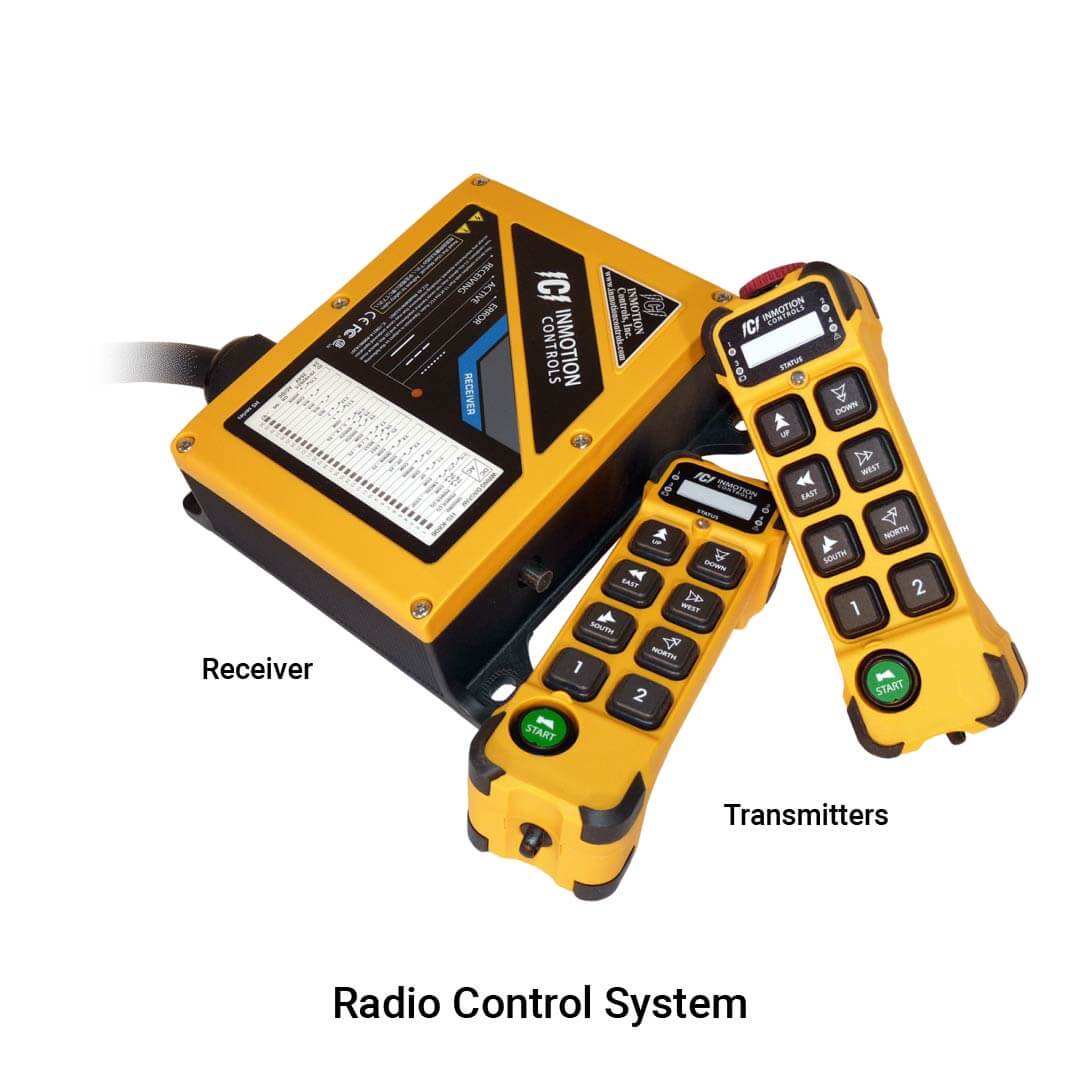

INMOTION K Series Radio Control System Specifications
INMOTION K Series Radio Transmitter Specifications

Can't find what you're looking for?

Contact us today if you need a custom solution.

INMOTION K Series: A Better Way to Operate

The INMOTION K Series Radio Remote Control System is the most advanced radio system available. It is capable of having 1 to 6 Motion Control and 1 or 2 Speed.

Expertly Designed

The K Series radio transmitter has an ergonomic design. You’ll have easy operation with its large buttons and spacing. The casing is stronger than ever with its robust construction. The IP65 enclosure protection makes it resilient to dirt and water. Additionally, there are rubber bumpers on all corners of the transmitter. This means you’ll have shock absorption if you drop your transmitter.

Safe Operation

The INMOTION K Series Radio Remote Control System is FCC, IC, and CE compliant. The radio transmitter features an easily accessible stop (E-Stop) button at the top. That way in the event of an emergency, you’ll have ultimate control and be able to stop operation right away.

Ultimate Control

The INMOTION K Series Radio Remote Control System contains a multi-frequency auto selection and bi-directional communication. This means you no longer have to manually select the frequency, the INMOTION K Series does it for you. The INMOTION K Series radio transmitter also has an Interactive LED System Display with lights that correspond to which hoists you’re controlling.

Features

  • 433Mhz Multi-Frequency with Auto Selection
  • Bi-Directional Communication
  • Auto Power Sending 24 – 240 VAC / 24 – 160 VDC
  • Durable PA6 Construction with Shock Bumpers
  • Double Safety Stop MLC Relays
  • Interactive System Status LED’s

What’s Included?

  • 1 Receiving Unit (24 to 160 VAC or VDC Control Voltage)
  • 2 Transmitters
  • 4 AA Batteries
  • 2 Button Covers
  • 2 Lanyards
  • Mounting Hardware

InMotion K Series Transmitter Specs

Frequency 433MHz
Modulation Method 4 FSK
Typical Operating Range 300 ft. (100M)
Power Supply 2 X 1.5V “AA” Battery
Average Power Consumption 16mA @ 3VDC
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
K200–K808 Dimensions 193mm X 57mm X 51mm
K1010–K1212 Dimensions 230mm X 57mm X 51mm

InMotion K Series Receiving Unit Specs

Frequency 433MHz
Control System PLL
K200–K808 Power Supply 24 – 264 VAC or VDC (auto-sensing)
K1010–K1212 Power Supply 90 – 460 VAC or VDC (auto-sensing)
Operating Temperature -40F to +149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
K200–K808 Dimensions 190mm X 184mm X 64mm
K1010–K1212 Dimensions 272mm X 260mm X 96mm
K200–K808 Installation and Mounting Single Bolt
K1010–K1212 Installation and Mounting Four Bolts
Weight 5.8 lbs
Dimensions 12 × 10.75 × 3.75 in
Brand

Buttons

, , ,

Country of Origin

Motion

, , ,

Series

Warranty

  1. Donald Peterson –

    Fast shipping and easy installation

  2. Dane Jacob –

    Easy installation…..very fast shipping thanks

  3. Fred Unternahrer –

    Very fast shipping, I placed two separate orders and recieved both the following day. Easy installation, for a three motion two speed total instal time took me about 2 hours but that includes removing the existing pendant and festoon cable.

  4. Roberto Sainz –

    Very good service and good product. it works Great!!!
    Recomended 100%

Add a review

Your email address will not be published. Required fields are marked *

FAQs

  • How do I replace my transmitter?

    If you order a new transmitter from us to replace your old one, we will program your new transmitter to work out of the box with your system.

  • What does "step" mean?

    “Step” is the term used to refer to the number of different lifting speeds a hoist has. Sometimes the term “speed” is used instead of “step.” A single step (or single speed) hoist can only lift at the speed that it was originally programmed. A two step (or two speed) hoist can be programmed to lift at a slower speed and faster speed. A variable speed hoist has a lift speed that can be adjusted on the fly by the hoist operator with only the twist of a knob.

  • What does "motion" mean?

    “Motion” is the term used to refer to how many different components a radio can control. A 1 motion radio is used to control a hoist. A 2 motion radio is used to control a hoist and trolley. A 3 motion radio is used to control a hoist, trolley, and a bridge. Radios with 4 or more motions are for more advanced applications where the operator wants control multiple hoists, trolleys, or bridges all at the same time.

  • If my transmitter is not working, what should I check?

    The most often case is that the batteries are dead. To get the most out of your battery life, make sure to turn off the transmitter when not in use.
