INMOTION Replacement Transmitter (K & K Plus Series)

2 customer reviews

Price range: $387.00 through $1,118.00

Radio Information

This information is needed to make sure the transmitter (remote) works with your receiver. If you cannot read the ID Number or Channel Number on the transmitter it will also be on the receiving unit.
View Image of Serial Number and Channel Number Location

  • Serial Number *

    If your transmitter connects to tandem receivers separate the two IDs by a comma. The first ID you enter will be #1 and the second will be #2.Max: 50 characters

  • Channel Number *

    If your transmitter connects to tandem receivers separate the two channels by a comma. The first channel you enter will be #1 and the second will be #2.Max: 50 characters

Product total

Options total

Grand total

Lead Time: Ships in
 business days from PWI
SKU: K-TXCategories: Controls, Radios, INMOTION Replacement TransmittersTags: Replacement TransmitterBrand: InMotion
INMOTION Replacement Transmitter (K & K Plus Series)

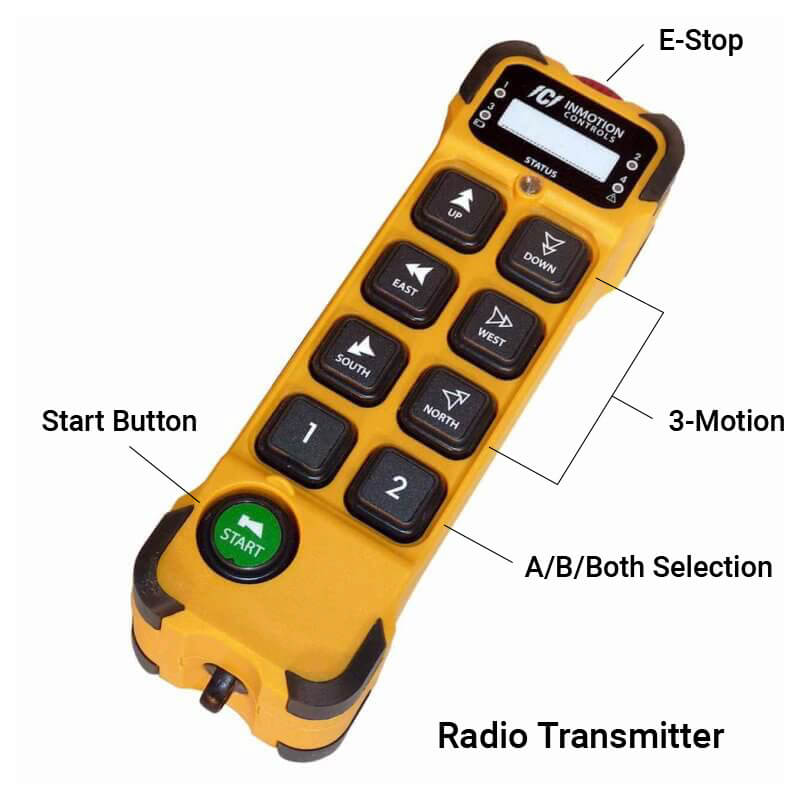

INMOTION K Series Radio Transmitter Specifications
INMOTION K Plus Series Radio Transmitter Specifications
INMOTION Replacement Transmitter (K & K Plus Series) - Image 4

Can't find what you're looking for?

Contact us today if you need a custom solution.

INMOTION Replacement Transmitter (K & K Plus Series)

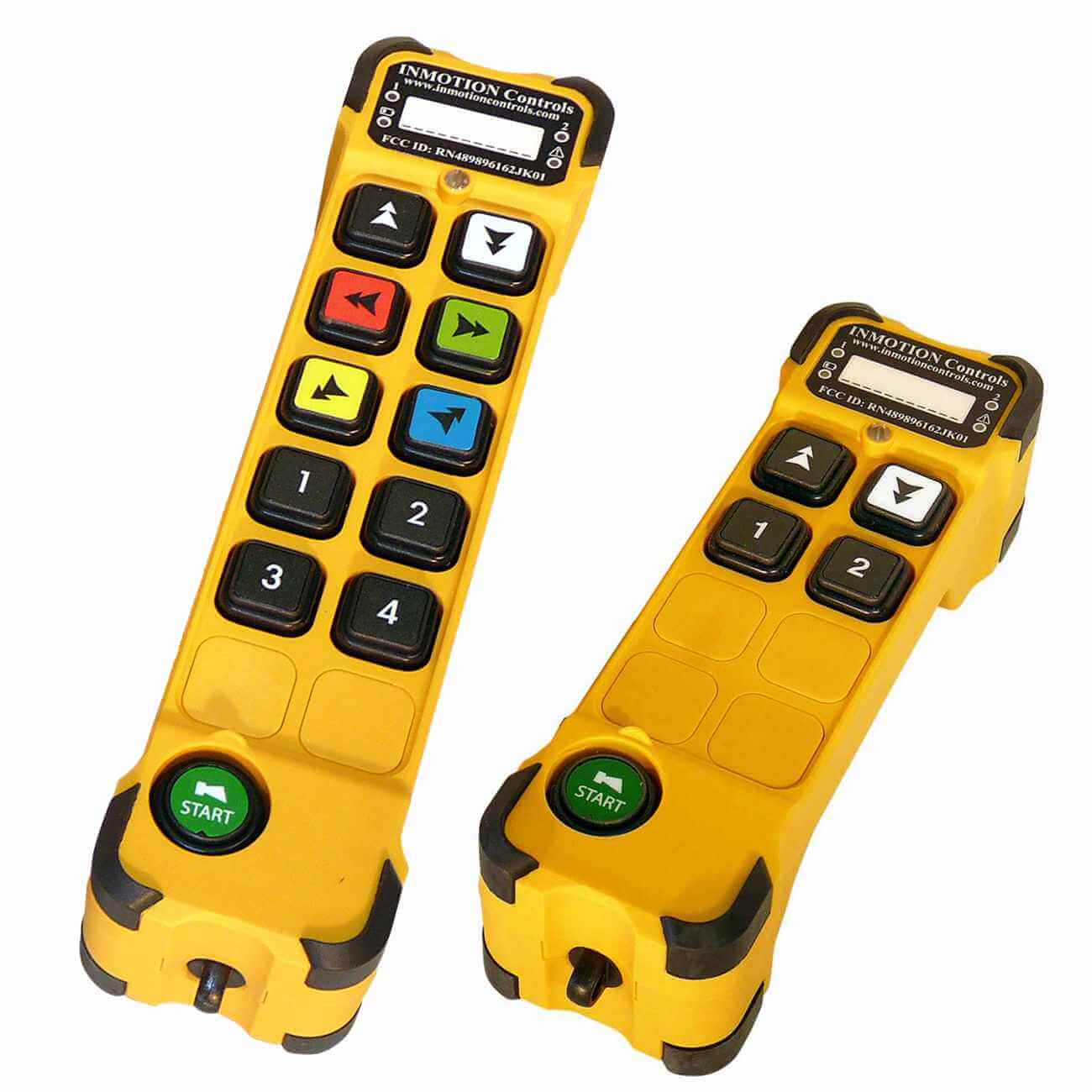

Replacement transmitters for INMOTION K Series and INMOTION K Plus Series Radio Remote Control Systems.

IP65 Rated.

K Series Housing Repair now available.

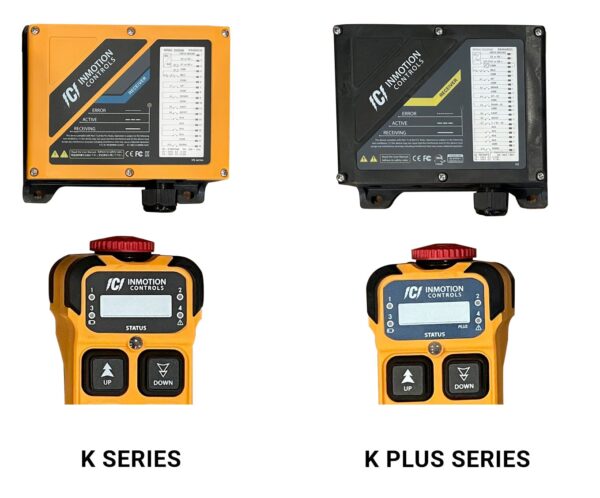

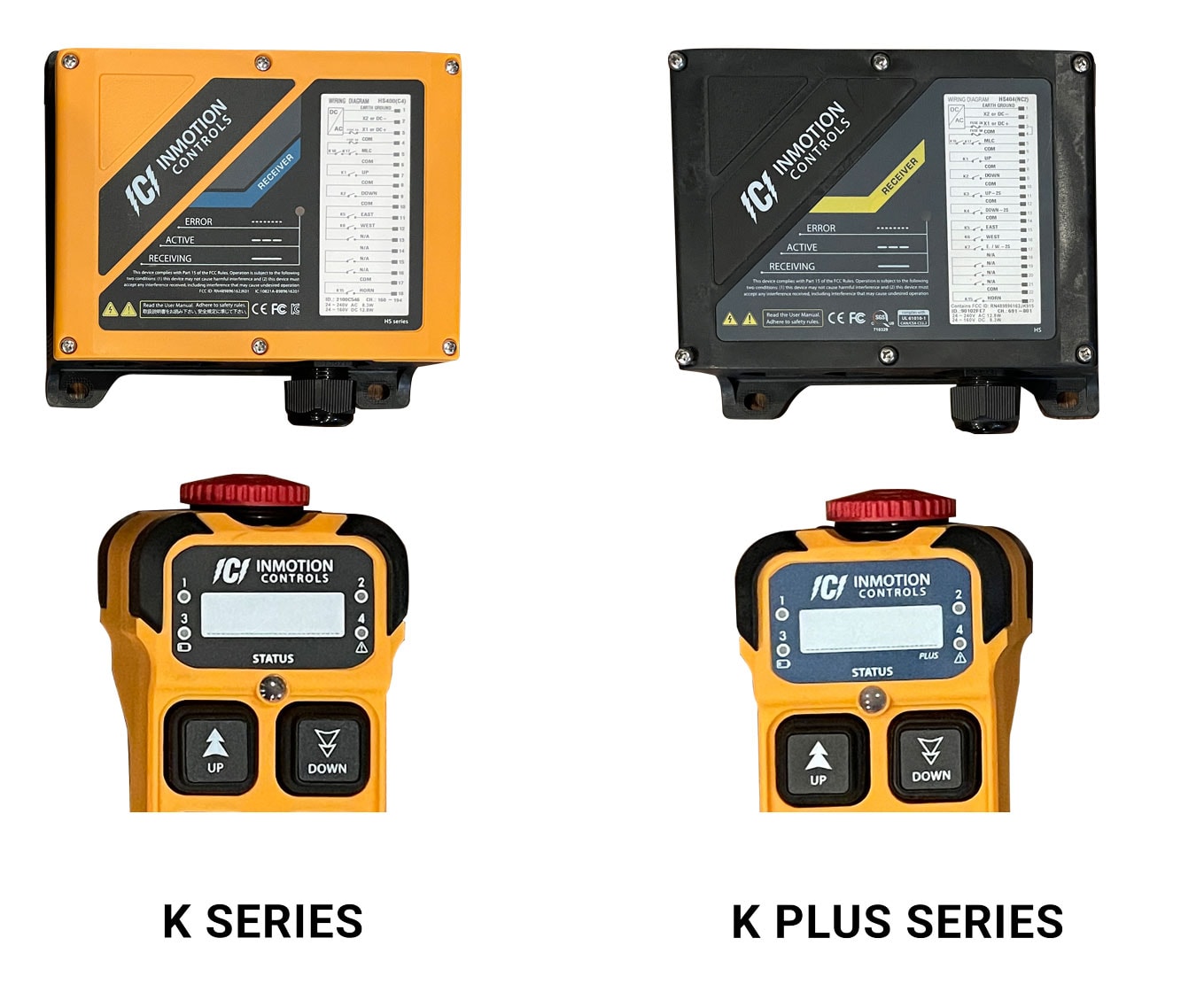

K Series: Black Digital Screen on Transmitter and Yellow Plate on Receiver

K Plus Series: Blue Digital Screen on Transmitter and Black Plate on Receiver

InMotion K Series Transmitter Specs

Frequency 433MHz
Modulation Method 4 FSK
Typical Operating Range 300 ft. (100M)
Power Supply 2 X 1.5V “AA” Battery
Average Power Consumption 16mA @ 3VDC
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
K200–K808 Dimensions 193mm X 57mm X 51mm
K1010–K1212 Dimensions 230mm X 57mm X 51mm

InMotion K Plus Series Transmitter Specs

Frequency 902.5 – 927.5 MHz
Modulation Method 2GFSK
Typical Operating Range 300 Feet (100 Meters)
Power Supply 2 x 1.5V NiMH “AA” Battery
Average Power Consumption 38 mA @ 2.5 VDC
Operating Temperature -40° – 149°F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
K200 – K1010 Dimensions 193mm x 57mm x 51mm
K1212 Dimensions 272mm x 260mm x 96mm
Weight 2 lbs
Dimensions 12 × 3.75 × 3.75 in
Brand

Buttons

, , , , ,

Country of Origin

Motion

, , , , ,

Series

System Model

, , , , , , , , , , , , , , , , , , ,

Warranty

  1. art Sanders –

    Excellent replacement remotes at a very affordable price.
    plus very quick shipping .Best place I have found to buy replacenents

  2. Ronald Livaudais –

    Great all around products! My Grandfather and I are very happy with the quality of the Transmitters. We also would like to say that we received professional customer service! They made absolute sure that all numbers were correct, so when I got the Transmitters they would work with the receiver I had. Thanks for making life a little bit easier for us. ?

Add a review

Your email address will not be published. Required fields are marked *

FAQs

  • How do I replace my transmitter?

    If you order a new transmitter from us to replace your old one, we will program your new transmitter to work out of the box with your system.

  • What does "step" mean?

    “Step” is the term used to refer to the number of different lifting speeds a hoist has. Sometimes the term “speed” is used instead of “step.” A single step (or single speed) hoist can only lift at the speed that it was originally programmed. A two step (or two speed) hoist can be programmed to lift at a slower speed and faster speed. A variable speed hoist has a lift speed that can be adjusted on the fly by the hoist operator with only the twist of a knob.

  • What does "motion" mean?

    “Motion” is the term used to refer to how many different components a radio can control. A 1 motion radio is used to control a hoist. A 2 motion radio is used to control a hoist and trolley. A 3 motion radio is used to control a hoist, trolley, and a bridge. Radios with 4 or more motions are for more advanced applications where the operator wants control multiple hoists, trolleys, or bridges all at the same time.

  • If my transmitter is not working, what should I check?

    The most often case is that the batteries are dead. To get the most out of your battery life, make sure to turn off the transmitter when not in use.
