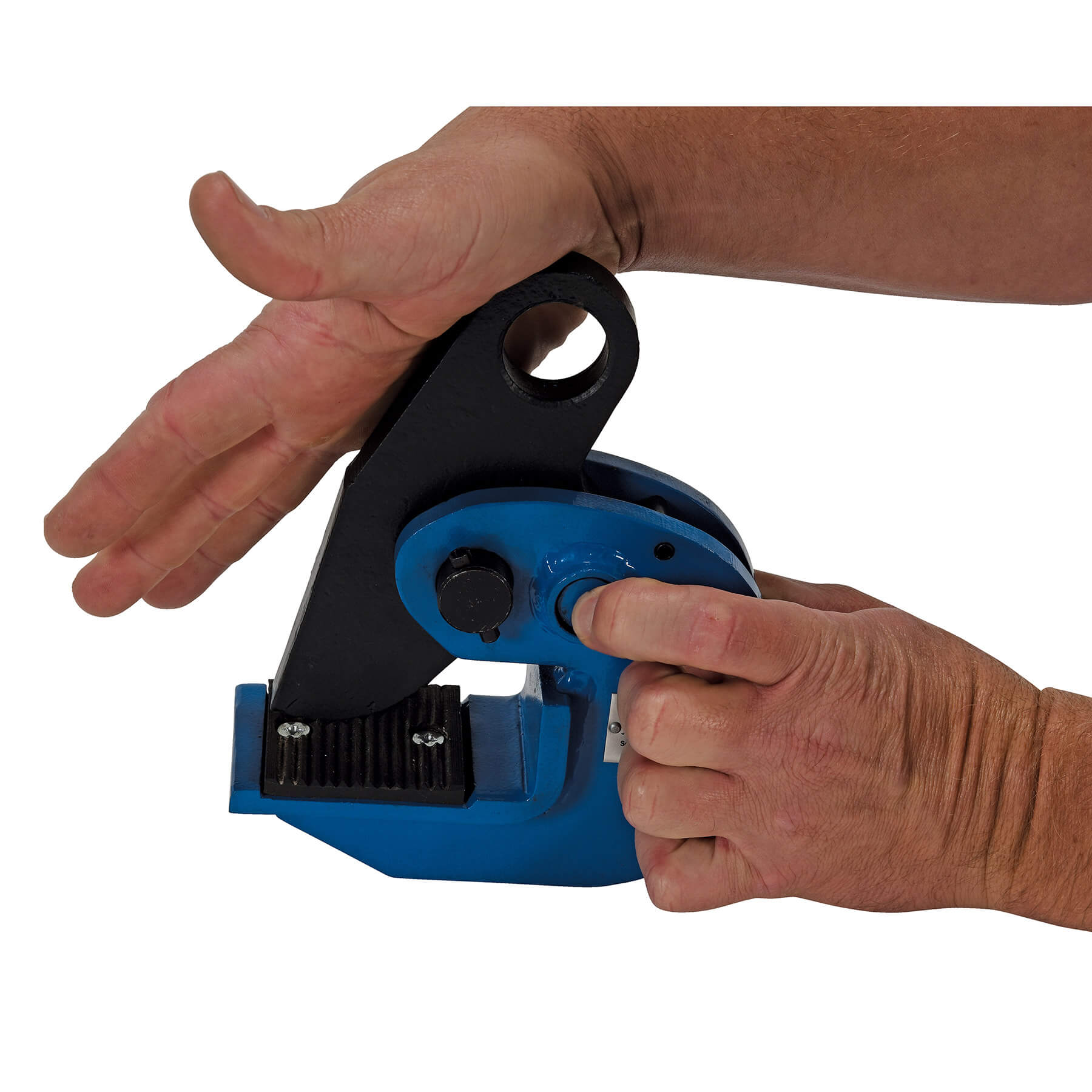

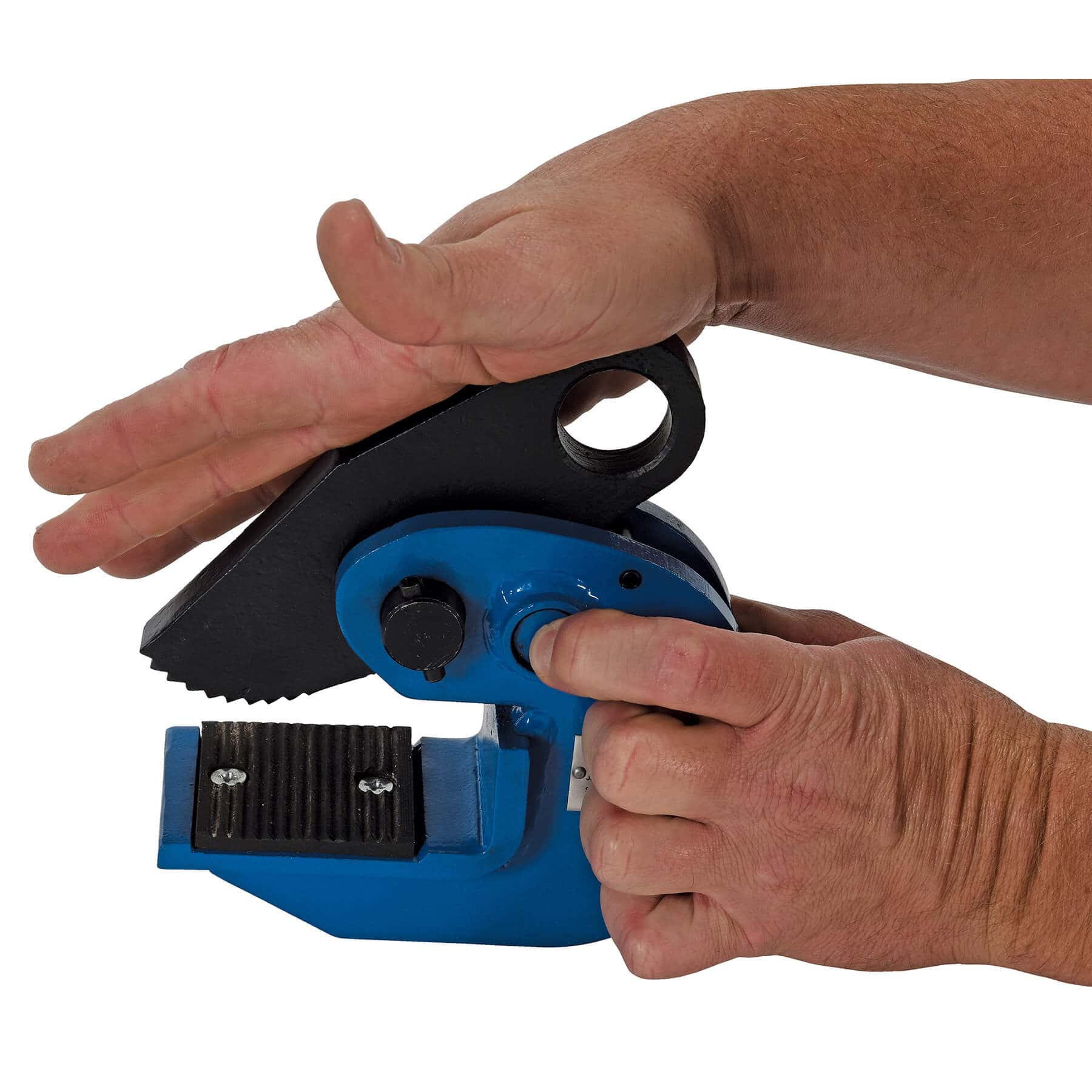

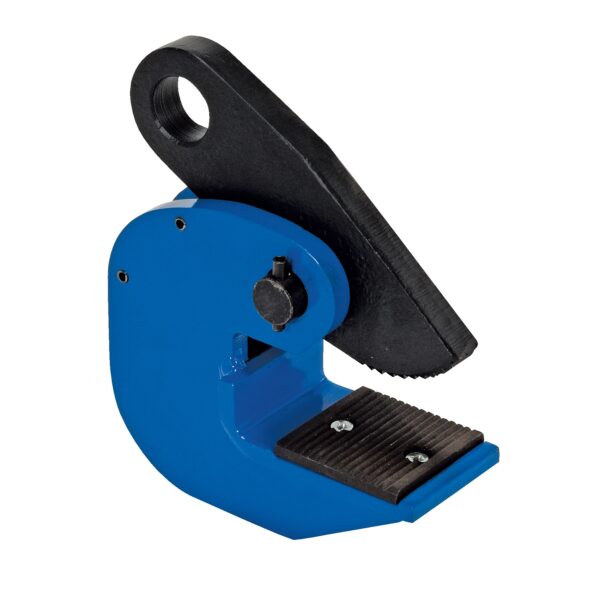

Vestil Horizontal Plate Clamp
Designed for you to safely lift plate materials in the horizontal position. With its heavy-duty construction, this horizontal plate clamp will last you a lifetime.
Features
- Capacities: 1 Ton – 5 Ton
- Meets ASME B30.20 Specifications
- Heavy-Duty Steel Construction
- For materials with a surface hardness to 30 RC (300 HB)
Important Safety Information
- Do not use plate clamps to lift loads less than 20% of rated capacity
- Lift only one plate at a time
- Plate must be clean and free of oil
- Not designed to use on stainless steel or aluminum plates
Horizontal Plate Clamp Specs
| Model | Maximum Plate Thickness | Capacity | Minimum Plate Weight | Bale Opening | Wt. (lbs) |
| HPC-20 | 0.8125″ | 2,000 lbs | 400 lbs | 1.2″ | 9 |
| HPC-40 | 1.25″ | 4,000 lbs | 800 lbs | 1.2″ | 12 |
| HPC-80 | 1.375″ | 8,000 lbs | 1600 lbs | 1.2″ | 15 |
| HPC-100 | 1.4375″ | 10,000 lbs | 2800 lbs | 1.2″ | 17 |
